EIFFELVISION 2 TUTORIAL

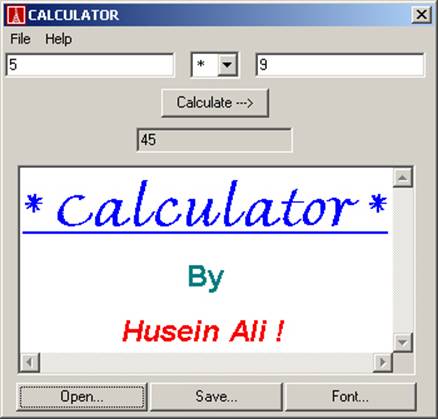

This tutorial will introduce you on how to build GUI applications with the new cross-platform EiffelVision 2 class library.  The application we’ll work on will be a simple calculator. We’ll keep building the calculator incrementally and most importantly manually. EiffelStudio has many wizards to automate the application development process, but we’ll strictly avoid them. The calculator will look something similar to the figure below:



First off, we’ll assume that you already know enough about the Eiffel language i.e. basic OO concepts as it relates to Eiffel.  We’ll also assume that you’re familiar enough to be able to navigate around EiffelStudio.  Please refer to the EiffelStudio: A Guided Tour manual located at http://www.eiffel.com/doc/online/eiffel50/intro/studio to learn how to use EiffelStudio. We’ll make use of the EiffelVision 2 class library, the most recent version released with EiffelStudio.  EiffelVision 2 is a portable, object-oriented GUI class library. At the lower level of EiffelVision 2, platform specific libraries like WEL (Windows Eiffel Library) and GEL (GTK Eiffel Library for Unix) cover the graphical mechanisms of Microsoft Windows and X-Windows.  As a matter of fact, the new EiffelStudio IDE was built using EiffelVision 2 J. The new revised version of this library sports a completely redesigned framework with many new enhancements, the most notable of which is the introduction of agents for event-handling. We’ll go through a quick overview of what agents are later in the tutorial. Let’s get started now:

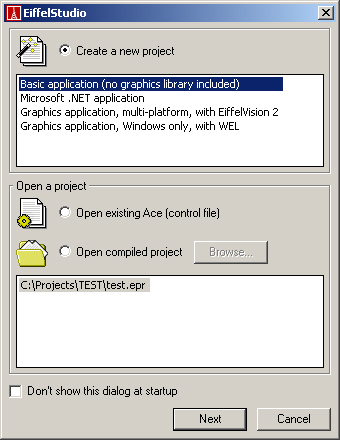

Run EiffelStudio and from the File menu, select New Project… and you’ll be prompted with a wizard like dialog box.  Select the ‘Basic application (no graphics library included)’ option.  You can use the ‘Graphics application, multi-platform, with EiffelVision2’ option, however, that’ll defeat the purpose of this tutorial, as the wizard will generate all the code automatically.  If you’re comfortable enough, you may want to choose the later option and then customize the resultant generated application, but I suggest you follow the approach I’m taking here.  This way, you’ll know exactly what is entailed in creating an EiffelVision 2 based application.

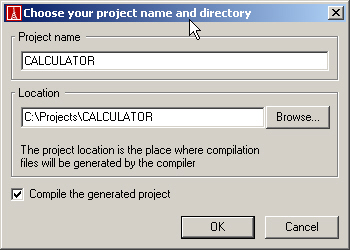

Click on Next and you’ll be presented with the project name dialog box.  Set the name to Calculator as in the above figure.  Click on OK and EiffelStudio will automatically create a ROOT_CLASS and compile the project for you.  The ROOT_CLASS is an empty skeleton that doesn’t do anything useful.  By default, the two clusters present in our project are base and root_cluster.  Before we start using EiffelVision 2 specific classes, we need to add the vision2 and the wel cluster in our project. Select the Project à Project settings menu-item to go to the Project configuration dialog box.   Select the cluster tab and click on the Add button and type in vision2 for the Cluster name.  Next, select the vision2 cluster that you just added and set the Cluster path to $ISE_EIFFEL\library\vision2.  Similarly, add the wel Cluster name with Cluster path as $ISE_EIFFEL\library\wel.  This should work if you’ve installed EiffelVision 2 correctly during the EiffelStudio setup.  Make sure the library and all checkboxes are ticked while the vision2 and wel cluster is highlighted.  Next, select the Externals tab and add the following entries for the Include Path:



$(ISE_EIFFEL)\library\wel\spec\windows\include

$(ISE_EIFFEL)\library\vision2\spec\include



Now add the following entries for the Object file path:



$(ISE_EIFFEL)\library\vision2\spec\$(ISE_C_COMPILER)\lib\vision2.lib

$(ISE_EIFFEL)\library\wel\spec\$(ISE_C_COMPILER)\lib\wel.lib

$(ISE_EIFFEL)\library\vision2\spec\$(ISE_C_COMPILER)\lib\libpng.lib

$(ISE_EIFFEL)\library\vision2\spec\$(ISE_C_COMPILER)\lib\zlib.lib

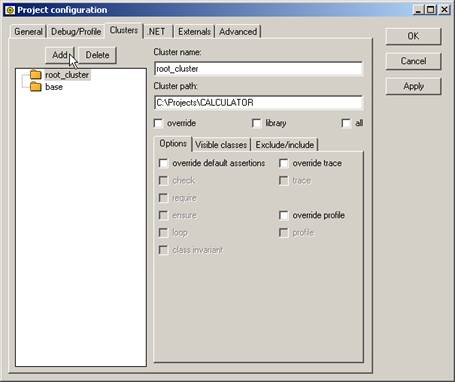

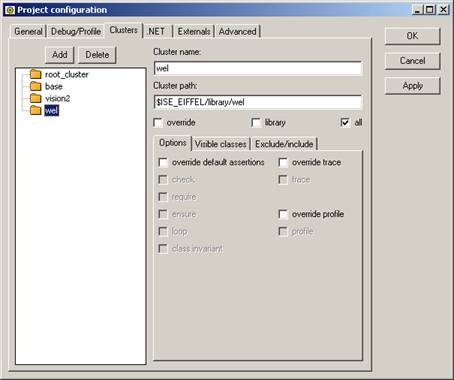

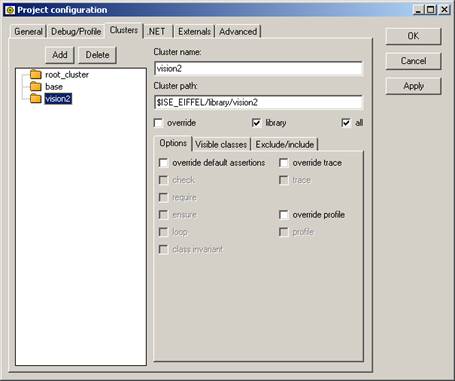

In addition, you’ll also need to make sure certain entries are included in the Exclude/include tab list.  Adding all those entries is cumbersome; to relieve you of extraneous effort, I’ve posted the project ace file for you to copy.  The project configuration dialog box is really nothing more than a visual mapping of the project ace file. Anything you add to the ace file is parsed and displayed here and vice-versa. Did we really have to go through all these steps to set up the library dependencies? Absolutely NO L. Can we simply copy the ace file and forget setting this and that dependencies manually? Absolutely YES J. It’s really up to you!  Follow these screen-shots to see how it’s done visually:









Next, press OK to dismiss the Project configuration dialog box. You MUST compile the project now for the classes to be visible on the clusters tree-view pane in EiffelStudio.  After having done that, you’ll be able to navigate through all the classes that are available in the EiffelVision 2 and the wel class libraries. At this point, your ace file should read like this:



system

      calculator



root

      ROOT_CLASS: make



default

      assertion(require)

      arguments(" ")

      disabled_debug(yes)

      disabled_debug("dlg_dispatcher")

      disabled_debug("gdi_count")

      disabled_debug("vision2_windows")

      disabled_debug("vision2_windows_gdi")

      disabled_debug("wel")

      disabled_debug("wel_gdi_count")

      disabled_debug("wel_gdi_references")

      disabled_debug("win_dispatcher")

      debug(no)

      line_generation(no)

      profile(no)

      trace(no)

      il_verifiable(yes)

      msil_generation_type("exe")

      check_vape(yes)

      console_application(no)

      address_expression(no)

      array_optimization(no)

      dead_code_removal(yes)

      dynamic_runtime(no)

      exception_trace(no)

      inlining(no)

      multithreaded(no)



-- EiffelBase



cluster

      root_cluster:           "."





      all base:         "$ISE_EIFFEL\library\base"

            exclude

                  "table_eiffel3"; "desc";

            end



      all vision2:      "$ISE_EIFFEL\library\vision2"

            exclude

                  "gtk"; "EIFGEN"; "tmp"; "temp"; "release"; "obsolete"; "CVS";

            end



      all wel:          "$ISE_EIFFEL\library\wel"



external



      include_path:

            "$(ISE_EIFFEL)\library\wel\spec\windows\include",

            "$(ISE_EIFFEL)\library\vision2\spec\include"



      object:

            "$(ISE_EIFFEL)\library\vision2\spec\$(ISE_C_COMPILER)\lib\vision2.lib",

            "$(ISE_EIFFEL)\library\wel\spec\$(ISE_C_COMPILER)\lib\wel.lib",

            "$(ISE_EIFFEL)\library\vision2\spec\$(ISE_C_COMPILER)\lib\libpng.lib",

            "$(ISE_EIFFEL)\library\vision2\spec\$(ISE_C_COMPILER)\lib\zlib.lib"



end



So far, we’ve only done preliminary work.  Let’s start using the EiffelVision 2 classes now J.



Right now the ROOT_CLASS that was automatically generated looks like this:

indexing

        description: "System's root class"

        note: "Initial version automatically generated"

class

        ROOT_CLASS

create

        make

feature -- Initialization

        make is

               --| Creation procedure.

               do

               end

end -- class ROOT_CLASS



Not very interesting, huh?  Let’s modify our ROOT_CLASS to create a simple main window for our calculator.  But first, a little chip about class EV_APPLICATION, the most important class in the EiffelVision2 framework. Every EiffelVision2 based application root class MUST either descend from the EV_APPLICATION class or use it as a client (instance variable/feature). The EV_APPLICATION class is the main entry point of ALL EiffelVision2 applications; think of it as being like the root class for all EiffelVision2 based applications.  It’s primarily responsible for initializing the underlying operating system specific graphical toolkit and for starting the application main event-loop, which in fact is the heart of an EiffelVision2 based application.  We’ll pick the former choice and descend from EV_APPLICATION. The following code snippet will create a simple main window for our calculator:

indexing

        description: "System's root class"

        note: "Initial version automatically generated"

class

        ROOT_CLASS

inherit

        EV_APPLICATION

create

        make

feature -- Initialization

        make is

               --| Creation procedure

               local

                       main_window: EV_TITLED_WINDOW

               do

                       default_create

                       -- Create main window

                       create main_window.make_with_title ("Calculator")

                       main_window.set_size (350, 200)

                       main_window.disable_user_resize

                       main_window.close_request_actions.extend (agent destroy)

                       main_window.show

                       launch

               end

end -- class ROOT_CLASS



Note: All EiffelVision2 classes start with the prefix EV_ to distinguish them from other classes.

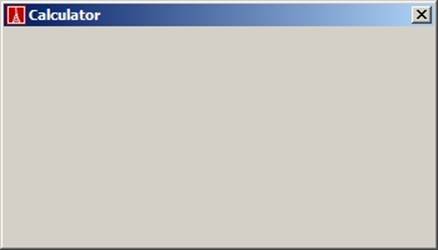

If you run the above application, this is what you get:





Let’s understand what the above code accomplishes.  By now, you must know that ALL Eiffel classes implicitly descend from class ANY. If this sounds unfamiliar, please consult an Eiffel language reference for details. We’ll quickly skim through this background area. Class ANY provides core features that perform type conformance tests, cloning, deep/shallow copy, equality tests etc.  Class EV_ANY, which descends from ANY is the EiffelVision2 version of ANY for all classes found in the EiffelVision2 class library i.e. every class in the EiffelVision2 library ultimately descends from class EV_ANY. Class EV_ANY augments class ANY with additional features, the most important of which is probably default_create. This feature is responsible for correctly initializing an EiffelVision2 class object. A rule of thumb with ANY EiffelVision2 class is that you MUST, either directly or indirectly call default_create during object creation. But then how does it work internally ? How can one single feature correctly anticipate and initialize all possible descendent class

objects ?  You don’t need to understand this section for the rest of the tutorial; you may very well skip it if you wish.



Do you remember the word polymorphism, the magic at the heart of OO programming ?  The creation sequence for ALL EiffelVision2 objects is such: feature default_create calls feature intitialize which is redefined (overridden) for any descendent specific initialization. It’s that simple J.  In addition, there are other helper features that take care of platform specific initialization. The normal pattern is that default_create will produce a properly initialized default object and any special convenience creation features will call default_create then do their extra work. The important thing to remember about class EV_ANY is that it provides a common interface for all EiffelVision2 classes across all platforms. Platform implementation specific delegate classes are managed by EV_ANY transparently behind the scenes, but that’s something we really don’t care about.



We’re now prepared to analyze the above code snippet.  Our ROOT_CLASS descends from class EV_APPLICATION as indicated before so no surprise there.  The creation feature make, declares a local variable of type EV_TITLED_WINDOW.  This class is exactly what its name suggests.  It encapsulates a window with a title caption. The first line of the make feature invokes feature default_create inherited from EV_APPLICATION.  Remember what we just said: default_create MUST be called for ALL EiffelVision2 class objects. The next line creates an object of type EV_TITLED_WINDOW.  This creates a window titled Calculator. The next line calls feature set_size to set the pixel width/height of the window.

Next, feature disable_user_resize is invoked; this will prevent the user from resizing our window (very user-friendly J).  For now, ignore the next line that reads close_request_actions.extend (agent destroy).

It’s an event handler mechanism that requires an understanding of agents which we’ll cover shortly.



Although we’ve created the window, it only exists in memory.  We need to DISPLAY it to the user.  Feature show does precisely that. It displays the window on the screen. Now that we have the window on the screen, we need to instruct our ROOT_CLASS to enter an event-loop.  Every GUI application typically has an event-loop.  Events like mouse-clicks, keyboard strokes etc. that are of interest are constantly fired during an applications lifetime. These events are trapped by the application event-loop and further dispatched to the appropriate window and usually results in a feature execution appropriate for the event that was fired.  The loop runs continuously in the background awaiting events until the application is closed.  Feature launch starts the application event-loop running.



At this point, I’m quite certain that you’re probably wondering where the heck is default_create being called for the main_window object.  After all, I did mention that this feature needs to be called for EVERY EiffelVision2 class object ? You’re quite right.  However, this time, the feature is being called indirectly for us.  As it turns out, creation feature make_with_title in class EV_TITLED_WINDOW calls default_create automatically.



Ok, let’s move on now to create a couple of widgets on the main window.  Look at Fig 1.  We need to create menus and add some buttons, edit boxes and combo boxes on the main window.  Before we do that, I’d like you to pause and consider this:  We’ve used the EV_TITLED_WINDOW class as a client in our ROOT_CLASS.  That’s perfectly legitimate.  However, for reasons that will apparent later, it’s actually better to create our own custom class that inherits from EV_TITLED_WINDOW with focused functionality. We’ll now rewrite what we have so far and use the EV_TITLED_WINDOW in an inheritance relationship as opposed to a client-supplier relationship. At this point, we’ll have TWO classes (and hence two source files):

indexing

        description: "System's root class"

        note: "Initial version automatically generated"

class

        ROOT_CLASS

inherit

        EV_APPLICATION

create

        make

feature -- Initialization

        make is

               -- Creation procedure

               local

                       main_window: CALCULATOR_WINDOW

               do

                       -- Initialize application object

                       default_create

                       -- Create main window

                       create main_window

                       main_window.show

                       -- Start event-loop

                       launch

               end

end -- class ROOT_CLASS

indexing

        description: "Calculator window class"

        author: "Husein Ali"

class

        CALCULATOR_WINDOW

inherit

        EV_TITLED_WINDOW

               redefine

                       initialize

               end

create

        default_create

feature -- Initialization

        initialize is

                       -- Build the interface for this window.

               do

                       Precursor {EV_TITLED_WINDOW}

                       close_request_actions.extend (agent close_window)

                       set_title (window_title)

                       set_size (window_width, window_height)

                       disable_user_resize

               end

feature {NONE} -- Implementation, Close event

        close_window is

                       -- The user wants to close the window.  Return reference to ‘destroy’ feature.

               do

                       (create {EV_ENVIRONMENT}).application.destroy

               end

feature {NONE} -- Implementation / Constants

        Window_title: STRING is "CALCULATOR"

                       -- Title of the window.

        Window_width: INTEGER is 350

                       -- Initial width for this window.

        Window_height: INTEGER is 200

                       -- Initial height for this window.

end -- class CALCULATOR_WINDOW

So how is this approach different from the previous one we had? Look carefully at class ROOT_CLASS. In the former approach, all the window specific initialization was performed in the make feature of class ROOT_CLASS by calling features on the EV_TITLED_WINDOW object, namely main_window. This time around however, all the initialization is performed in the initialize feature of our custom class CALCULATOR_WINDOW which inherits from class EV_TITLED_WINDOW. The make feature in class ROOT_CLASS only creates the CALCULATOR_WINDOW object and calls feature show. The rest of the work (initialization) is done automatically inside the CALCULATOR_WINDOW. This is a good example of encapsulation, an important feature of OO programming.

Let’s now see how CALCULATOR_WINDOW functions.  The creation feature of class CALUCLATOR_WINDOW is delegated to feature default_create, inherited from EV_TITLED_WINDOW.  Feature default_create as discussed before calls feature initialize which we override. A recurring question again: where is default_create called? Look carefully again: The creation feature for this class is default_create; it’s automatically called when an object of this class type is instantiated.  Yikes, gotcha there!  The statement Precursor {EV_TITLED_WINDOW} is necessary because we need to correctly initialize all the ancestors of this class.  Next, features set_size, set_title and disable_user_resize are exactly as discussed before. The expression reading close_request_actions.extend (agent close_window) handles the main windows close event and is similar to the previous close_request_actions.extend (agent destroy) which we had ignored.  Since event handling is a very common task in EiffelVision2, let’s first gain an understanding of agents, a mechanism via which EiffelVision2 handles events.  If you’re already accustomed to working with function pointers in C/C++, procedural types in Object Pascal or delegates under the Microsoft .NET framework, then you already know what agents entail. Agents are however much more than that but those are details that aren’t relevant to our discussion. We’ll only consider an oversimplified case with enough rigor to be able to use them effectively with EiffelVision2 without concerning ourselves too much with details.

In the OO world, one of the cornerstone concepts is the notion of objects and operations i.e. object instances represent information equipped with operations (features in Eiffel) that can be invoked using the object instance qualifier. This draws a clear line of distinction between an object and any operations that may be invoked on the object. Think of an object as a separate entity distinct from all its operations. Simply stated, an object is NOT an operation and an operation is NOT an object.  This is the conventional form of decoupling objects from its associated operations.  This division works for most cases, however, there are cases in which it makes intuitive sense to treat operations as objects and pass them around to software elements which can then use them to execute the operation the object encapsulates.  This scheme separates the place of an operations definition from the place of its execution. As such, the definition can be incomplete, since the missing details are provided at the instant of any particular execution.  Confusing?  Let me elaborate: Say we’re developing an extremely powerful generic feature that can integrate a large class of functions of type f(x). Our problem is that the integrate feature has no prior knowledge of the specific nature of f(x).  It could be a simple function like f(x) = x, a quadratic function like f(x) = x2 or a complicated polynomial. This forces us to conclude that the integrate feature should not be tied to any specific f(x) and that the actual computation of f(x) at any x is decoupled from the integrate feature i.e. the computation of f(x) is performed OUTSIDE of the integrate feature. The feature corresponding to f(x) can be a feature in any class that has a signature with input parameter type corresponding to the function domain type x (probably a floating-point) and a return type corresponding to the function f(x) range type (probably a floating-point as well). Ok, so far so good. Now, the question that arises next is how will the integrate function actually call the feature that corresponds to f(x) to compute f(x) at a given value of x. This is where agents come into play.  An agent object encapsulates a feature (operation) within a given objects scope and stores enough information about it such that the agent may then be used to call upon the feature it encapsulates.

In our case, we’d like to write an expression that only describes the calls intended for the actual f(x) computation and execute that description later on at any time. Think of this technique as delayed calls.

Let us work through an example. Suppose our integrate feature is called integrate and that f’(x) is the anti-derivative of f(x).  Let β = an agent class type encapsulating a feature that computes f’(x) (the anti-derivative of f(x)). The signature of the feature that computes f’(x) MUST have a single input double type parameter with return type double e.g. feature_X (in: DOUBLE): DOUBLE.  This is what the

pseudo-code for the implementation of feature integrate looks like:

integrate(function_to_call: β, lower_bound: INTEGER , upper_bound: INTEGER): DOUBLE is

require

        meaningful_interval: lower_bound <= upper_bound

local

    upper_value, lower_value: DOUBLE

do

        -- CALL feature represented by agent object passing upper_bound as a parameter.

        -- This has the effect of calling f’(upper_bound).

        upper_value := function_to_call(upper_bound)

        -- Call feature represented by agent object passing lower_bound as a parameter.

        -- This has the effect of calling f’(lower_bound).

        lower_value := function_to_call(lower_bound)

        -- Return result of the integrate computation.

        Result := upper_value – lower_value

end

Note: The syntax for the β declaration and the call function_to_call(…) has been simplified in the above example.  In actual usage, the FUNCTION/PROCEDURE and the TUPLE class along with related syntactic elements are employed, but that’s a complication that we skip here altogether.

Next, assume that we have the following features for functions f’(x) and g’(x):

             function_X(x: DOUBLE): DOUBLE

             function_G(x: DOUBLE): DOUBLE

Note: function_X and function_G represent the anti-derivative versions of the functions f(x) and g(x).

These features may reside in the scope of a single object of the same class type or two different objects of a single class type or possibly two different objects of two different class types.  The location of the feature is irrelevant as long as it satisfies the specified agent type signature β.  We’d now like to integrate these functions from bounds zero to one. The call will be implemented as such:

value := integrate(agent function_X, 0, 1)

        value := integrate(agent function_Y, 0, 1)

Note: We assume function_X and function_G are currently in scope. If not, an object instance will be necessary to specify a fully qualified feature reference.

Nothing magical; really quite simple as you can see.  The keyword agent creates an agent object that refers to the feature that follows it, in this case, function_X and function_G.  Notice how the integrate feature accommodates BOTH the functions by decoupling its implementation from the actual implementation of the function being integrated.  Obviously, passing an agent object that refers to an anti-derivative feature makes the integrate feature really trivial to implement but I hope the core concept of one possible use of agents has sunk in you head J If not, go back and reread this section L. Furthermore, in the above example, the value of the integrate feature is returned before execution continues with the next line. In other words, execution is synchronous.  It’s possible to pass agent objects and then continue execution and expect the agent to be used at ANY time thereafter also known as asynchronous execution. In the case of event-handling with EiffelVision2, we register an agent object that will be executed when a particular event of interest happens.  For example, we can register an agent object for a button widget by making use of feature select_actions of class EV_BUTTON.  After the agent is registered, any clicks on the button will result in the routine (feature) execution encapsulated by the agent registered previously.

In passing, one last item before we conclude agents: It’s very much possible to supply some parameters and leave others open during the agent object construction for a feature and then fill them just before the actual execution takes place. In particular, you may build an agent from a routine with more arguments than expected in the final call, and you may set the values of some arguments at the time you define the agent. This provides for a very powerful programming model but is unfortunately outside the scope of this tutorial so we won’t get into it. I thought I’d just mention it for the benefit of the die-hard EiffelVision 2 fans J. Finally, the bottom line about an event associated agent object is that it’s nothing but a triple [Control X, Event Y, Operation Z] tuple. Simply stated, some EiffelVision2 Control X object receives an Event Y signal which results in execution of some Operation Z.  Period J. For detailed information on agents, please see Bertrand Meyers article on Agents, iteration and introspection from the ISE website (check the URL http://www.eiffel.com/doc/manuals/language/agent/page.html).

Let’s now go back to feature initialize in the CALCULATOR_WINDOW class.  The expression close_request_actions.extend (agent close_window) requests the window object to call the close_window feature whenever a close event is received i.e. an attempt is made to close the window. A slight detour before we explain feature close_window: All EiffelVision2 applications create an EV_ENVIRONMENT class type object upon startup.  This class has facilities for inspecting global environment information i.e. environment, application and system wide global variables are stored here.

Remember, every EiffelVision2 based application root class MUST either descend from the EV_APPLICATION class or use it as a client (instance variable/feature). In either case, the EV_APPLICATION conformant object instance created by/in the ROOT_CLASS is cached in the EV_ENVIRONMENT object (created automatically upon initialization). The usefulness of having an EV_ENVIRONMENT object is that we can access our EV_APPLICATION object instance even when we’re NOT in the scope of our ROOT_CLASS anymore. Class EV_APPLICATION has one very important feature called destroy which simply exits an application. We would like to exit our application when a close event is signalled/received in our window object.  Therefore, we need to construct an agent that encapsulates the destroy feature of class EV_APPLICATION so that our application is exited when the close event is detected. The only way to access the EV_APPLICATION conformant object instance inside the CALCULATOR_WINDOW class, which is outside the SCOPE of the ROOT_CLASS, is to use an EV_ENVIRONMENT object.  The close_window feature constructs such an instance and then via the application feature (which in fact is the EV_APPLICATION object instance we’re after) returns a reference to the destroy feature. This reference is returned by the close_window feature and then used for the agent object construction.

This concludes the first phase of the calculator.  We now have the core basic skeleton of our calculator working by using the EV_TITLED_WINDOW in an inheritance relationship.  The next sections will only augment class CALCULATOR_WINDOW to provide for more functionality.

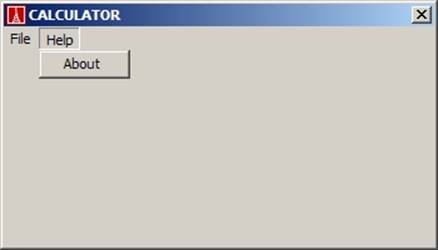

Our next task is to add menu-items in the main window. The visual changes that need to be incorporated to the main window are as such:

Selecting the Exit menu-item should close the application.... Duh J. Selecting the About menu-item should bring up this dialog box:

The following is the updated source for the CALCULATOR_WINDOW class:

indexing

        description: "Calculator window class"

        author: "Husein Ali"

class

        CALCULATOR_WINDOW

inherit

        EV_TITLED_WINDOW

               redefine

                       initialize

               end

create

        default_create

feature -- Initialization

        initialize is

                       -- Build the interface for this window.

               do

                       Precursor {EV_TITLED_WINDOW}

                       -- Create and add the menu bar.

                       build_menu_bar

                       set_menu_bar (standard_menu_bar)

                       -- Execute `close_window' when the user clicks

                       -- on the cross in the title bar.

                       close_request_actions.extend (agent close_window)

                       -- Set the title of the window

                       set_title (window_title)

                       -- Set the initial size of the window

                       set_size (window_width, window_height)

                       -- Prevent user from resizing calculator

                       disable_user_resize

               end

feature {NONE} -- Implementation, Close event

        close_window is

                       -- The user wants to close the window

               do

                       (create {EV_ENVIRONMENT}).application.destroy

               end

        show_about_box is

                       -- Display an about box.

               local

                       about_dialog: EV_INFORMATION_DIALOG

               do

                       create about_dialog.make_with_text ("EiffelVision2 Calculator

                                                                  Example.%NBy Husein Ali.")

                       about_dialog.set_title ("ABOUT CALCULATOR")

                       about_dialog.show_modal_to_window (Current)

               end

feature {NONE} -- Menu implementation

        standard_menu_bar: EV_MENU_BAR

                       -- Standard menu bar for this window.

        file_menu: EV_MENU

                       -- "File" menu for this window (contains Exit...)

        help_menu: EV_MENU

                       -- "Help" menu for this window (contains About...)

        build_menu_bar is

                       -- Create and populate standard_menu_bar.

               require

                       menu_bar_not_yet_created: standard_menu_bar = void

               local

                       menu_item: EV_MENU_ITEM

               do

                       -- Create the menu bar.

                       create standard_menu_bar

                       -- Add the "File" menu

                       create file_menu.make_with_text ("&File")

                       create menu_item.make_with_text ("E&xit")

                       file_menu.extend (menu_item)

                       standard_menu_bar.extend (file_menu)

                       -- Close application when 'Exit' menu-item selected.

                       menu_item.select_actions.extend (agent close_window)

                       -- Add the "Help" menu

                       create help_menu.make_with_text ("&Help")

                       create menu_item.make_with_text ("&About")

                       help_menu.extend (menu_item)

                       standard_menu_bar.extend (help_menu)

                       -- Display ABOUT box when 'About' menu-item selected.

                       menu_item.select_actions.extend (agent show_about_box)

               ensure

                       menu_bar_created: standard_menu_bar /= void and then

                                         not standard_menu_bar.is_empty

               end

feature {NONE} -- Implementation / Constants

        Window_title: STRING is "CALCULATOR"

                       -- Title of the window.

        Window_width: INTEGER is 350

                       -- Initial width for this window.

        Window_height: INTEGER is 200

                       -- Initial height for this window.

end -- class CALCULATOR_WINDOW

Feature initialize has been updated to create a main-main for our window.  The actual task of creating the menu is delegated to feature build_menu_bar.  The main-menu object is feature standard_menu_bar of class type EV_MENU_BAR.  This class type allows one to build a main-menu bar for a window by hierarchically adding/arranging sub menu/item objects of class type EV_MENU, EV_MENU_ITEM etc.  In our case, we need two sub-menus namely File and Help.  Feature build_menu_bar starts off by creating the main EV_MENU_BAR object.  Next, an EV_MENU object to represent the File sub-menu is created.  A temporary local variable of type EV_MENU_ITEM is used to create the Exit menu-item object.  Notice how the menu-item is then extended on to the File sub-menu followed by the File sub-menu itself being extended on to the main-menu. This is how the menu hierarchy is built. Also notice how we register a menu-item click/select event.  In the above example, after having created the File sub-menu and the Exit menu-item, we specify that feature close_window be called whenever a click/select event takes places for the Exit menu-item. Remember, at this point of execution, local variable menu_item contains a reference to the Exit menu-item that was just created a few lines above. Next, the same technique is employed to build the Help sub-menu containing the About menu-item.  In this case however, the click/select event-handler for the About menu-item is feature show_about_box. All this feature does is display an about dialog box to the user.  This is easily accomplished by making use of class EV_INFORMATION_DIALOG.  Check feature show_about_box; it’s really trivial to follow J.

After the menu is constructed, we make use of feature set_menu_bar to set the constructed menu object hierarchy as the main-menu for our window.  Since feature standard_menu_bar is the root of the menu constructed, it’s passed as a parameter to set_menu_bar.  Note: There can only be one main-menu active at any given time for a given window. Calling set_menu_bar will remove the previously set main-menu, if any.

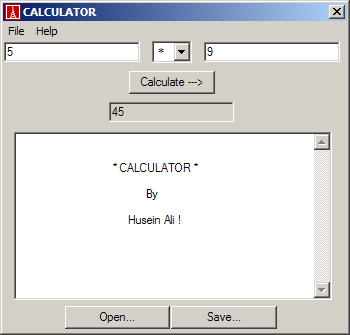

Now let’s add a couple of widgets on the main window so that we may use the calculator to actually calculate something J.  The updated CALCULATOR_WINDOW class along with the corresponding visual changes follows:

indexing

        description: "Calculator window class"

        author: "Husein Ali"

class

        CALCULATOR_WINDOW

inherit

        EV_TITLED_WINDOW

               redefine

                       initialize

               end

create

        default_create

feature -- Initialization

        initialize is

                       -- Build the interface for this window.

               do

                       Precursor {EV_TITLED_WINDOW}

                       -- Create and add the menu bar.

                       build_menu_bar

                       set_menu_bar (standard_menu_bar)

                       -- Create the operator/operand primitives

                       build_primitives

                       -- Execute `close_window' when the user clicks

                       -- on the cross in the title bar.

                       close_request_actions.extend (agent close_window)

                       -- Set the title of the window

                       set_title (window_title)

                       -- Set the initial size of the window

                       set_size (window_width, window_height)

                       -- Prevent user from resizing calculator

                       disable_user_resize

               end

feature {NONE} -- Implementation events

        close_window is

                       -- The user wants to close the window

               do

                       (create {EV_ENVIRONMENT}).application.destroy

               end

        show_about_box is

                       -- Display an about box.

               local

                       about_dialog: EV_INFORMATION_DIALOG

               do

                       create about_dialog.make_with_text ("EiffelVision2 Calculator

                                                                  Example.%NBy Husein Ali.")

                       about_dialog.set_title ("ABOUT CALCULATOR")

                       about_dialog.show_modal_to_window (Current)

               end

feature {NONE} -- Menu implementation

        standard_menu_bar: EV_MENU_BAR

                       -- Standard menu bar for this window.

        file_menu: EV_MENU

                       -- "File" menu for this window (contains Exit...)

        help_menu: EV_MENU

                       -- "Help" menu for this window (contains About...)

        build_menu_bar is

                       -- Create and populate standard_menu_bar.

               require

                       menu_bar_not_yet_created: standard_menu_bar = void

               local

                       menu_item: EV_MENU_ITEM

               do

                       -- Create the menu bar.

                       create standard_menu_bar

                       -- Add the "File" menu

                       create file_menu.make_with_text ("&File")

                       create menu_item.make_with_text ("E&xit")

                       file_menu.extend (menu_item)

                       standard_menu_bar.extend (file_menu)

                       -- Close application when 'Exit' menu-item selected.

                       menu_item.select_actions.extend (agent close_window)

                       -- Add the "Help" menu

                       create help_menu.make_with_text ("&Help")

                       create menu_item.make_with_text ("&About")

                       help_menu.extend (menu_item)

                       standard_menu_bar.extend (help_menu)

                       -- Display ABOUT box when 'About' menu-item selected.

                       menu_item.select_actions.extend (agent show_about_box)

               ensure

                       menu_bar_created: standard_menu_bar /= void and then

                                         not standard_menu_bar.is_empty

               end

feature {NONE} – Misc. primitives implementation

        enclosing_box: EV_FIXED

                       -- Invisible Primitives Container

        first_operand: EV_TEXT_FIELD

        second_operand: EV_TEXT_FIELD

                       -- Operator primitives

        result_text: EV_TEXT_FIELD

                       -- Calculation result text box.

        operator: EV_COMBO_BOX

Operator combo-box primitive

        calculate_btn: EV_BUTTON

        calculate_result is

                       -- Calculate the result after the user clicks

                       -- on the 'Calculate --->' button.

               local

                       value: REAL

                       error_dialog: EV_INFORMATION_DIALOG

               do

                       -- Make sure the operands are valid real numbers

                 if (first_operand.text_length > 0) and (first_operand.text.is_real)

                                                     and

                    (second_operand.text_length > 0) and (second_operand.text.is_real)

                 then

                               -- Clear result edit text box contents.

                               result_text.remove_text

                               -- Calculate :-)

                               if operator.selected_item.text.is_equal (" +") then

                                      value := first_operand.text.to_real +

                                               second_operand.text.to_real

                               elseif operator.selected_item.text.is_equal (" -") then

                                      value := first_operand.text.to_real –

                                               second_operand.text.to_real

                               elseif operator.selected_item.text.is_equal (" *") then

                                      value := first_operand.text.to_real *

                                               second_operand.text.to_real

                               elseif operator.selected_item.text.is_equal (" /") then

                                      -- Deal with Divide By Zero error.

                                   if second_operand.text.to_real = 0 then

                                      create error_dialog.make_with_text ("Divide By Zero!");

                                      error_dialog.set_title ("Error");

                                       error_dialog.set_pixmap(default_pixmaps.error_pixmap);

                                      error_dialog.show_modal_to_window (Current)

                                   else

                                      value := first_operand.text.to_real /

                                               second_operand.text.to_real

                                   end

                               end

                               -- Set calculated result value

                               result_text.set_text (value.out)

                       end

               end

        build_primitives is

                       -- Create the operand/operator primitives

               require

                       enclosing_box_not_yet_created: enclosing_box = void

                       first_operand_not_yet_created: first_operand = void

                       second_operand_not_yet_created: second_operand = void

                       result_text_not_yet_created: result_text = void

                       operator_not_yet_created: operator = void

                       calculate_btn_not_yet_created: calculate_btn = void

               do

                       -- Avoid flicker on some platforms

                       lock_update

                       -- Cover entire window area with a primitive container.

                       create enclosing_box

                       extend (enclosing_box)

                       -- Add first operator text edit box primitive

                       create first_operand

                       first_operand.set_minimum_width (138)

                       enclosing_box.extend (first_operand)

                       -- Add operator combo-box primitive

                       create operator

                       operator.set_minimum_width (40)

                       operator.extend (create {EV_LIST_ITEM}.make_with_text (" +"))

                       operator.extend (create {EV_LIST_ITEM}.make_with_text (" -"))

                       operator.extend (create {EV_LIST_ITEM}.make_with_text (" *"))

                       operator.extend (create {EV_LIST_ITEM}.make_with_text (" /"))

                       operator.disable_edit

                       enclosing_box.extend (operator)

                       enclosing_box.set_item_x_position (operator, 149)

                       -- Add second operator text edit box primitive

                       create second_operand

                       second_operand.set_minimum_width (138)

                       enclosing_box.extend (second_operand)

                       enclosing_box.set_item_x_position (second_operand, 200)

                       -- Add 'calculate' button primitive

                       create calculate_btn.make_with_text ("Calculate --->")

                       calculate_btn.set_minimum_width (86)

                       calculate_btn.select_actions.extend (agent calculate_result)

                       enclosing_box.extend (calculate_btn)

                       enclosing_box.set_item_x_position (calculate_btn, 126)

                       enclosing_box.set_item_y_position (calculate_btn, 30)

                       -- Add result text edit box primitive

                       create result_text

                       result_text.set_minimum_width (127)

                       result_text.disable_edit

                       enclosing_box.extend (result_text)

                       enclosing_box.set_item_x_position (result_text, 105)

                       enclosing_box.set_item_y_position (result_text, 60)

                       -- Allow screen refresh on some platforms

                       unlock_update

               ensure

                       enclosing_box_created: enclosing_box /= void

                       first_operand_created: first_operand /= void

                       second_operand_created: second_operand /= void

                       result_text_created: result_text /= void

                       operator_created: operator /= void and then operator.count = 4

                       calculate_btn_created: calculate_btn /= void

               end

feature {NONE} -- Implementation / Constants

        Window_title: STRING is "CALCULATOR"

                       -- Title of the window.

        Window_width: INTEGER is 350

                       -- Initial width for this window.

        Window_height: INTEGER is 200

                       -- Initial height for this window.

end -- class CALCULATOR_WINDOW

Whew, I hope that wasn’t a heavy initial dosage J.  Relax, I assure you the changes aren’t really that frightening as they seem to appear. Ok, take a deep breath and let’s get our feet wet!

Feature initialize is updated again to build the user-interface primitives following the main-menu creation by making use of feature build_primitives.  For our calculator, we need two text-edit widgets to enter the operands and a list to select the operator (either +, -, * or /) needed to compute the desired result. In addition, we also need a text-edit widget to show the result of the calculation and a button to trigger the computation. There’s a slight complication here that we need to understand before me move on.  As is, a top-level EV_TITLED_WINDOW object can serve as a container for only ONE immediate child widget. Now, stop scratching your head and please don’t ask me why that’s the case because I don’t have an answer.  Esteemed engineers at ISE, are you listening? So, then how do we add our widgets (> ONE) on to the main window.  The answer is to use a suitable child container widget (remember only ONE is permitted on the main window) that’ll cover the whole window client area and allow us to add > one child widget on to it.  Effectively, our components will be the children of this container which in turn will be the only immediate child of the main window.  This is possible because a container is really just another widget that can be nested within another container.  Ahhh, problemo solved. Don’t we all just love to outsmart a computer J.  The magical container that we’ll use is class EV_FIXED. This is what feature build_primitives first starts off with. We create an EV_FIXED object called enclosing_box. Next, we extend it to the list of child controls on the main window, although, in this case, there can really be only ONE child control for the main window. Next, we create an object of type EV_TEXT_FIELD for the first operand and extend it to the list of child controls of the enclosing_box.  Further, we call feature set_width, which resizes the width of the widget in pixel-units. Next, we instantiate an object of type EV_COMBO_BOX to create a list of operators. Notice how we also create instances of EV_LIST_ITEM and extend them as children of the EV_COMBO_BOX object just created.  The syntax we employed for creating the list items is one where the list item objects are not assigned to any feature/variable. This is justified since we really don’t need to access these item objects directly after they are created, hence, we employ this syntactic sugar.  We also call feature disable_edit to disallow the user to edit the contents of the list. The list is positioned 149 pixels from the left of the enclosing_box. Immediately following that, we create a second EV_TEXT_FIELD object for the second operand and position it 200 pixel-units away from the left-hand side of ­enclosing_box (effectively, the main window because enclosing_box covers the whole window anyways!). This layout makes the operator list positioned in between the two operand widgets, which, you’ll agree is intuitive. Following that, we create an EV_BUTTON object that encapsulates a button widget and place it underneath the operator list.  Notice we register a click/select event-handler for the button.  The event-handler is feature calculate_result, which we’ll cover shortly. Finally, we create an EV_TEXT_FIELD object for the result of the computation which is positioned right beneath the button object.

Feature calculate_result is undoubtedly the heart of our calculator; after-all, this is precisely where the calculation takes place!  The first step in this feature is to check the contents of the two operand text-edit box widgets for valid floating-point numbers.  The first conditional statement accomplishes just that.  It checks for some input (operand string length > 0) and valid real number (via feature is_real). Once we’ve verified for valid floating-point operands, we clear the contents of the result text-edit box widget of any previous value. Next, we interrogate the operator list to check which operator is currently active/selected based on which, we either add, subtract, multiply or divide. Following that, we simply set the result text-edit widget with the newly computed value.  Before we conclude this section, check the divide operation; it’s a little involved.  Can you make out what it does? See what happens when you attempt to divide by zero?

Hint: This dreaded dialog box will appear:

In case you’ve not realized it yet, you’ve just finished creating your first EiffelVision 2 application!  The good news is that we now have a complete working calculator, BUT, I really hate to hastily conclude a tutorial with such a trivial ending. We didn’t have a chance to really crank out our gray matter with EiffelVision 2 J.  To pique your interest, let’s add something more to our calculator; just a few finishing touches that’ll spice it up.

Let’s add a simple text-editor to our calculator; something similar to notepad. We would like to open, save and edit the contents of a text file.  A really cool feature to add is the ability to change the font displayed for the text file contents. This last feature is something that’s easily implemented in windows. The Windows OS comes with a default system wide rich-text edit window class that can be created using the windows API.  This window class is distributed in file Riched32.dll, usually found in your windows system sub-directory. Unfortunately, I don’t know of any easy way to edit rich-text-format files in UNIX.  So, for the benefit of both type of audiences, I’ll provide a version of the calculator that’ll incorporate rich-text editing capabilities and another one that’ll only cater to pure text files with NO font-formatting capabilities. The changes made to the CALCULATOR_WINDOW class will result in the following visual representations of the calculator window:

                                   Rich-text version                                  Simple-text version

The rich-text version allows you to open, edit and save rich-text files. In addition, the editor allows you to highlight portions of the text and apply font-formatting only to the selected piece of text.  Although color may also be specified for each character in the rich-text version, we skipped that implementation deliberately to keep the example easy to follow. You might wonder how I managed to get that fancy blue, teal and red colors for the sample text in the snapshot above? J Hint: Try using WordPad and Ctrl-X, Ctrl-C and Ctrl-P on the rich-text edit control!  The rich-text version of the calculator will only work on the Windows platform.  The simple-text version allows you to only open and save pure text files with NO text-formatting capabilities; this version will work on any platform.

This is the source listing for the version of the calculator with rich-text formatting capabilities.

indexing

        description: "Calculator window class"

        author: "Husein Ali"

class

        CALCULATOR_WINDOW

inherit

        EV_TITLED_WINDOW

               redefine

                       initialize

               end

create

        default_create

feature -- Initialization

        initialize is

                       -- Build the interface for this window.

               do

                       Precursor {EV_TITLED_WINDOW}

                       -- Create and add the menu bar.

                       build_menu_bar

                       set_menu_bar (standard_menu_bar)

                       -- Create the operator/operand primitives

                       build_primitives

                       -- Execute `close_window' when the user clicks

                       -- on the cross in the title bar.

                       close_request_actions.extend (agent close_window)

                       -- Set the title of the window

                       set_title (window_title)

                       -- Set the initial size of the window

                       set_size (window_width, window_height)

                       -- Prevent user from resizing calculator

                       disable_user_resize

               end

feature {NONE} -- Implementation events

        close_window is

                       -- The user wants to close the window

               do

                       (create {EV_ENVIRONMENT}).application.destroy

               end

        show_about_box is

                       -- Display an about box.

               local

                       about_dialog: EV_INFORMATION_DIALOG

               do

                       create about_dialog.make_with_text ("EiffelVision2 Calculator

                                                                  Example.%NBy Husein Ali.")

                       about_dialog.set_title ("ABOUT CALCULATOR")

                       about_dialog.show_modal_to_window (Current)

               end

feature {NONE} -- Menu implementation

        standard_menu_bar: EV_MENU_BAR

                       -- Standard menu bar for this window.

        file_menu: EV_MENU

                       -- "File" menu for this window (contains Exit...)

        help_menu: EV_MENU

                       -- "Help" menu for this window (contains About...)

        build_menu_bar is

                       -- Create and populate standard_menu_bar.

               require

                       menu_bar_not_yet_created: standard_menu_bar = void

               local

                       menu_item: EV_MENU_ITEM

               do

                       -- Create the menu bar.

                       create standard_menu_bar

                       -- Add the "File" menu

                       create file_menu.make_with_text ("&File")

                       create menu_item.make_with_text ("E&xit")

                       file_menu.extend (menu_item)

                       standard_menu_bar.extend (file_menu)

                       -- Close application when 'Exit' menu-item selected.

                       menu_item.select_actions.extend (agent close_window)

                       -- Add the "Help" menu

                       create help_menu.make_with_text ("&Help")

                       create menu_item.make_with_text ("&About")

                       help_menu.extend (menu_item)

                       standard_menu_bar.extend (help_menu)

                       -- Display ABOUT box when 'About' menu-item selected.

                       menu_item.select_actions.extend (agent show_about_box)

               ensure

                       menu_bar_created: standard_menu_bar /= void and then

                                         not standard_menu_bar.is_empty

               end

feature {NONE} -- Misc primitives implementation

        enclosing_box: EV_FIXED

                       -- Invisible Primitives Container

        first_operand: EV_TEXT_FIELD

        second_operand: EV_TEXT_FIELD

                       -- Operator primitives

        result_text: EV_TEXT_FIELD

                       -- Calculation result text box.

        operator: EV_COMBO_BOX

                       -- Operator combo-box primitive

        calculate_button: EV_BUTTON

        rich_text_edit: WEL_RICH_EDIT

        open_button: EV_BUTTON

        save_button: EV_BUTTON

        font_button: EV_BUTTON

        calculate_result is

                       -- Calculate the result after the user clicks

                       -- on the 'Calculate --->' button.

               local

                       value: REAL

                       error_dialog: EV_INFORMATION_DIALOG

               do

                       -- Make sure the operands are valid real numbers

                 if (first_operand.text_length > 0) and (first_operand.text.is_real)

                                                    and

                    (second_operand.text_length > 0) and (second_operand.text.is_real)

                 then

                               -- Clear result edit text box contents.

                               result_text.remove_text

                               -- Calculate :-)

                               if operator.selected_item.text.is_equal (" +") then

                                      value := first_operand.text.to_real +

                                               second_operand.text.to_real

                               elseif operator.selected_item.text.is_equal (" -") then

                                      value := first_operand.text.to_real –

                                               second_operand.text.to_real

                              elseif operator.selected_item.text.is_equal (" *") then

                                      value := first_operand.text.to_real *

                                               second_operand.text.to_real

                               elseif operator.selected_item.text.is_equal (" /") then

                                      -- Deal with Divide By Zero error.

                                   if second_operand.text.to_real = 0 then

                                       create error_dialog.make_with_text ("Divide By Zero!");

                                      error_dialog.set_title ("Error");

                                       error_dialog.set_pixmap(default_pixmaps.error_pixmap);

                                      error_dialog.show_modal_to_window (Current)

                                   else

                                      value := first_operand.text.to_real /

                                               second_operand.text.to_real

                                   end

                               end

                               -- Set calculated result value

                               result_text.set_text (value.out)

                       end

               end

        open_file is

                       -- Open a rich-text file

               local

                       file_open_dialog: EV_FILE_OPEN_DIALOG

                       f: RAW_FILE

               do

                       create file_open_dialog

                       file_open_dialog.show_modal_to_window (Current)

        if file_open_dialog.selected_button.is_equal((create

                                         {EV_DIALOG_CONSTANTS}).ev_ok) then

                               create f.make_open_read_write (file_open_dialog.file_name)

                               rich_text_edit.load_rtf_file (f)

                       end

               end

        save_file is

                       -- Save a rich-text file

               local

                       file_save_dialog: EV_FILE_SAVE_DIALOG

                       f: RAW_FILE

               do

                       create file_save_dialog

                       file_save_dialog.show_modal_to_window (Current)

        if file_save_dialog.selected_button.is_equal((create

                                                      {EV_DIALOG_CONSTANTS}).ev_ok) then

                               create f.make_open_write (file_save_dialog.file_name)

                               rich_text_edit.save_rtf_file (f)

                       end

               end

        change_font is

                       -- Change current font type/size

               local

                       font_dialog: EV_FONT_DIALOG

                       font_format: WEL_CHARACTER_FORMAT

                       font: EV_FONT

                       font_const: EV_FONT_CONSTANTS

               do

                       create font_dialog

                       font_dialog.show_modal_to_window (Current)

        if font_dialog.selected_button.is_equal((create

                                                      {EV_DIALOG_CONSTANTS}).ev_ok) then

                               font := font_dialog.font

                               create font_format.make

                               font_format.set_face_name (font.name)

                               font_format.set_height (font.height)

                               create font_const

                               if font.weight = font_const.weight_regular then

                                       font_format.unset_bold

                               elseif font.weight = font_const.weight_bold then

                                       font_format.set_bold

                               end

                               if font.shape = font_const.shape_regular then

                                       font_format.unset_italic

                               elseif font.shape = font_const.shape_italic then

                                       font_format.set_italic

                               end

                               rich_text_edit.set_character_format_selection (font_format)

                       end

               end

        build_primitives is

                       -- Create the operand/operator primitives

               require

                       enclosing_box_not_yet_created: enclosing_box = void

                       first_operand_not_yet_created: first_operand = void

                       second_operand_not_yet_created: second_operand = void

                       result_text_not_yet_created: result_text = void

                       operator_not_yet_created: operator = void

                       calculate_btn_not_yet_created: calculate_btn = void

               local

                       parent_window: WEL_WINDOW

               do

                       -- Avoid flicker on some platforms

                       lock_update

                       -- Cover entire window area with a primitive container.

                       create enclosing_box

                       extend (enclosing_box)

                       -- Add first operator text edit box primitive

                       create first_operand

                       first_operand.set_minimum_width (138)

                       enclosing_box.extend (first_operand)

                       -- Add operator combo-box primitive

                       create operator

                       operator.set_minimum_width (40)

                       operator.extend (create {EV_LIST_ITEM}.make_with_text (" +"))

                       operator.extend (create {EV_LIST_ITEM}.make_with_text (" -"))

                       operator.extend (create {EV_LIST_ITEM}.make_with_text (" *"))

                       operator.extend (create {EV_LIST_ITEM}.make_with_text (" /"))

                       operator.disable_edit

                       enclosing_box.extend (operator)

                       enclosing_box.set_item_x_position (operator, 149)

                       -- Add second operator text edit box primitive

                       create second_operand

                       second_operand.set_minimum_width (138)

                       enclosing_box.extend (second_operand)

                       enclosing_box.set_item_x_position (second_operand, 200)

                       -- Add 'calculate' button primitive

                       create calculate_btn.make_with_text ("Calculate --->")

                       calculate_btn.set_minimum_width (86)

                       calculate_btn.select_actions.extend (agent calculate_result)

                       enclosing_box.extend (calculate_btn)

                       enclosing_box.set_item_x_position (calculate_btn, 126)

                       enclosing_box.set_item_y_position (calculate_btn, 30)

                       -- Add result text edit box primitive

                       create result_text

                       result_text.set_minimum_width (127)

                       result_text.disable_edit

                       enclosing_box.extend (result_text)

                       enclosing_box.set_item_x_position (result_text, 105)

                       enclosing_box.set_item_y_position (result_text, 60)

                       -- Add rich-text edit control

                       parent_window ?= enclosing_box.implementation

                       create rich_text_edit.make (parent_window, "", 10, 90, 320, 170, - 1)

                       -- Add the rest of the buttons

                       create open_button.make_with_text ("Open...")

                       open_button.set_minimum_width (105)

                       enclosing_box.extend (open_button)

                       enclosing_box.set_item_x_position (open_button, 10)

                       enclosing_box.set_item_y_position (open_button, 265)

                       open_button.select_actions.extend (agent open_file)

                       create save_button.make_with_text ("Save...")

                       save_button.set_minimum_width (106)

                       enclosing_box.extend (save_button)

                       enclosing_box.set_item_x_position (save_button, 117)

                       enclosing_box.set_item_y_position (save_button, 265)

                       save_button.select_actions.extend (agent save_file)

                       create font_button.make_with_text ("Font...")

                       font_button.set_minimum_width (105)

                       enclosing_box.extend (font_button)

                       enclosing_box.set_item_x_position (font_button, 225)

                       enclosing_box.set_item_y_position (font_button, 265)

                       font_button.select_actions.extend (agent change_font)

                       -- Allow screen refresh on some platforms

                       unlock_update

               ensure

                       enclosing_box_created: enclosing_box /= void

                       first_operand_created: first_operand /= void

                       second_operand_created: second_operand /= void

                       result_text_created: result_text /= void

                       operator_created: operator /= void and then operator.count = 4

                       calculate_btn_created: calculate_btn /= void

               end

feature {NONE} -- Implementation / Constants

        Window_title: STRING is "CALCULATOR"

                       -- Title of the window.

        Window_width: INTEGER is 350

                       -- Initial width for this window.

        Window_height: INTEGER is 335

                       -- Initial height for this window.

end -- class CALCULATOR_WINDOW

If you try to compile this, you’ll get an error. Don’t panic yet.  Just read on.  The rich-text version of the calculator revolves around feature rich_text_edit: WEL_RICH_EDIT.  Oooops, did we read that right? WEL_RICH… What is a WEL class doing here??? Didn’t we mention that all classes in EiffelVision 2 begin with the EV_ prefix, so why are we using the WEL class library here? Remember, some time ago (first page of this tutorial!), we mentioned that “at the lower level of EiffelVision 2, platform specific libraries like WEL (Windows Eiffel Library) and GEL (GTK Eiffel Library for Unix) cover the graphical mechanisms of Microsoft Windows and X-Windows”……… Unfortunately, there's NO primitive in the EiffelVision 2 library that allows editing rich-text, so we resorted to using WEL_RICH_EDIT, a WEL class library that encapsulates a rich-text edit window.  Fortunately, the esteemed engineers at ISE had fully anticipated that the EiffelVision 2 library (or any other class library for that matter) can never be too generic to cover all possible implementation scenarios so they made sure the library is open-ended to account for such cases.  The only problem with resorting to a platform specific implementation library is that your code will end up working for only ONE platform, contrary to what the EiffelVision 2 library was supposed to relieve you of in the first place L.  Using an underlying implementation library like WEL directly has its own set of problems e.g. when it comes to coordinating/binding it with EiffelVision 2 based code (you’ll cast your eyes across such an example in a minute!). This is not the right place to review the WEL class library; please consult my previous tutorials for details on how to use the WEL class library.  The rest of the tutorial will assume you know a little about how the WEL class library functions.  Sorry folks, but there really is no easy way around this; that is, if you choose to follow the version of the calculator with rich-text editing capabilities.  If you think this is getting a little heavy, skip this section and try the other simpler version of the calculator first.  BTW, this IS the place where our gray matter will be cranked fully as promised J

So, exactly what problem are we facing by using a WEL class directly? Actually, I exaggerated a little more than I should have back there! In our case, there’s really only ONE problem and unfortunately, it’s an issue that the esteemed engineers at ISE are responsible for. Starting to feel relieved already J  See if this explanation makes any sense.  A little while back, we said that the EiffelVision 2 library exhibits a common interface for all its classes across all platforms via the EV_ANY class and that platform implementation specific delegate classes are managed by EV_ANY transparently behind the scenes, but, that was something we really didn’t care about, at-least not until now. Pretty much every EiffelVision 2 class has a corresponding implementation class(es) (WEL based on the Windows platform) that’s mapped and managed automatically by the library. Simply stated, an arbitrary EV_X EiffelVision 2 class usually has a corresponding EV_X_IMP platform specific implementation class.  This EV_X_IMP class makes use of one or more platform specific classes (either via inheritance and/or client-supplier relationship).  In our case, the platform specific classes are all WEL based. The EV_X_IMP object is accessed via the implementation feature of class EV_X. As it turns out, we’ll need to directly access this underlying implementation WEL object to be able to use the

rich_text_edit control correctly. The gist of the problem is such:

The make feature in class WEL_RICH_EDIT requires a parent window object of class type WEL_WINDOW.  This is the window that’ll contain the rich-text edit widget.  Ahhhhh, speaking of containing, remember our magical main window container enclosing_box of class type EV_FIXED? (If this is rusty, go back and re-read the relevant section).  The implementation class EV_FIXED_IMP for class EV_FIXED descends from class WEL_CONTROL_WINDOW which in turn descends from class WEL_WINDOW.  Realizing this, we try to access the implementation feature of the EV_FIXED container object (feature enclosing_box) inside our CALCULATOR_WINDOW class.  This would allow us to access the EV_FIXED_IMP object (type conformant to WEL_WINDOW) that we could happily pass on to the make feature of class WEL_RICH_EDIT. Take a look at the following statements in feature build_primitives:

        parent_window ?= enclosing_box.implementation

        rich_text_edit.make (parent_window, "", 10, 90, 320, 170, - 1)

If you try to compile the latest version of the source listing, you’ll get this error:

Error code: VUEX(2)

Error: feature of qualified call is not available to client class.

What do do: make sure feature after dot is exported to caller.

So why can’t we access feature implementation of class EV_FIXED inside the CALCULATOR_WINDOW class?  Go ahead and check the implementation feature export clause in class EV_FIXED; this is what it reads:

feature {EV_ANY_I} -- Implementation

        implementation: EV_FIXED_I

                -- Responsible for interaction with native graphics toolkit.

Feature {NONE} -- Implementation

        create_implementation is

                        -- See `{EV_ANY}.create_implementation'.

                do

                        create {EV_FIXED_IMP} implementation.make (Current)

                end

Bingo J.  Clearly, the implementation feature is only exported to class EV_ANY_I.  In other words, the feature that exposes the underlying native implementation object (WEL based in our case) can’t be accessed from class CALCULATOR_WINDOW (or any class except EV_ANY for that matter).  The obvious solution is to modify the export clause for feature implementation and manually ADD CALCULATOR_WINDOW. Once you make this change, the latest listing will compile and run correctly. Is this the right approach though?  Is there another clean way of accessing the underlying native implementation object in EiffelVision 2? Specifically, how else do we access the WEL_WINDOW implementation object that corresponds to the

EV_FIXED object? The simple answer is a NO, there’s no other alternative. Currently, there’s no way around this hack. It seems the engineers at ISE overlooked this problem L.  I’ve brought this matter to their attention and fortunately, they are reviewing this access method and hope to improve upon it for future versions of EiffelVision 2.

The only changes made in this implementation are adding features open_button: EV_BUTTON,

save_button: EV_BUTTON, font_button: EV_BUTTON, open_file, save_file, change_font and updating feature build_primitives. Feature build_primitives, adds a local parent_window: WEL_WINDOW variable, the purpose of which was already discussed. Augmenting to the previous buid_primitive code, the statements

        parent_window ?= enclosing_box.implementation

        rich_text_edit.make (parent_window, "", 10, 90, 320, 170, - 1)

were also just discussed. These lines create a new rich-text multi-line edit widget and positions it at the specified coordinates.  Remember, the rich-text edit control is enclosed by the main window container enclosing_box. The next set of lines create three new push buttons captioned ‘Open…’, ‘Save…’ and ‘Font…’ for the file open/save and font-formatting operations. These buttons are positioned immediately below the rich-text edit widget. The click event-handlers for these buttons are tied with features open_file, save_file and change_font.  Feature open_file makes use of class EV_FILE_OPEN_DIALOG to display a file select dialog box.  After retrieving the selected file name from the user, the feature opens the file using class RAW_FILE requesting read/write permissions and then delegates the task of loading the rich-text edit control with the file contents to feature load_rtf_file already implemented in class WEL_RICH_EDIT.  The save_file feature works along the same pattern as open_file except here, class EV_FILE_SAVE_DIALOG is

used instead and feature save_rtf_file is used in place of load_rtf_file. Feature change_font is relatively a bit more involved. A select font dialog box (of class type EV_FONT_DIALOG) is first displayed for the user to select a font and set any attributes like size, weight etc.  Next, the user selected font is then saved in a local font variable of class type EV_FONT.  An instance of class type WEL_CHARACTER_FORMAT by the name of font_format is then created. This class contains information about character formatting in a rich-edit control.  Following that, the font face-name, height, weight and shape attributes selected by the user are then applied to font_format.  Class EV_FONT_CONSTANTS is simply used to enhance code readability.  We could have very well materialized strange looking constants out of nowhere and everyone would be totally lost.  But then, that’s not what we want L Besides, it’s an ugly coding practice that we should all avoid (not always J).  The final statement calls feature set_character_format_selection and passes the font-formatting attributes contained in font_format as a parameter.  This sets the currently selected text with the font attributes contained in font_format.

This concludes the rich-text version of the calculator.  The following final segment of this tutorial will discuss the simpler version of the calculator that’ll work both on the Windows as well as the Unix platform.  You may conclude right here with the tutorial if you’re using the Windows platform J.  If you’re on the Unix platform, or simply wish to garnish your EiffelVision 2 repertoire, then please read on!

The following is the source listing for the version of the calculator with simple text-editing capabilities:

indexing

        description: "Calculator window class"

        author: "Husein Ali"

class

        CALCULATOR_WINDOW

inherit

        EV_TITLED_WINDOW

               redefine

                       initialize

               end

create

        default_create

feature -- Initialization

        initialize is

                       -- Build the interface for this window.

               do

                       Precursor {EV_TITLED_WINDOW}

                       -- Create and add the menu bar.

                       build_menu_bar

                       set_menu_bar (standard_menu_bar)

                       -- Create the operator/operand primitives

                       build_primitives

                       -- Execute `close_window' when the user clicks

                       -- on the cross in the title bar.

                       close_request_actions.extend (agent close_window)

                       -- Set the title of the window

                       set_title (window_title)

                       -- Set the initial size of the window

                       set_size (window_width, window_height)

                       -- Prevent user from resizing calculator

                       disable_user_resize

               end

feature {NONE} -- Implementation events

        close_window is

                       -- The user wants to close the window

               do

                       (create {EV_ENVIRONMENT}).application.destroy

               end

        show_about_box is

                       -- Display an about box.

               local

                       about_dialog: EV_INFORMATION_DIALOG

               do

                       create about_dialog.make_with_text ("EiffelVision2 Calculator

                                                                  Example.%NBy Husein Ali.")

                       about_dialog.set_title ("ABOUT CALCULATOR")

                       about_dialog.show_modal_to_window (Current)

               end

feature {NONE} -- Menu implementation

        standard_menu_bar: EV_MENU_BAR

                       -- Standard menu bar for this window.

        file_menu: EV_MENU

                       -- "File" menu for this window (contains Exit...)

        help_menu: EV_MENU

                       -- "Help" menu for this window (contains About...)

        build_menu_bar is

                       -- Create and populate standard_menu_bar.

               require

                       menu_bar_not_yet_created: standard_menu_bar = void

               local

                       menu_item: EV_MENU_ITEM

               do

                       -- Create the menu bar.

                       create standard_menu_bar

                       -- Add the "File" menu

                       create file_menu.make_with_text ("&File")

                       create menu_item.make_with_text ("E&xit")

                       file_menu.extend (menu_item)

                       standard_menu_bar.extend (file_menu)

                       -- Close application when 'Exit' menu-item selected.

                       menu_item.select_actions.extend (agent close_window)

                       -- Add the "Help" menu

                       create help_menu.make_with_text ("&Help")

                       create menu_item.make_with_text ("&About")

                       help_menu.extend (menu_item)

                       standard_menu_bar.extend (help_menu)

                       -- Display ABOUT box when 'About' menu-item selected.

                       menu_item.select_actions.extend (agent show_about_box)

               ensure

                       menu_bar_created: standard_menu_bar /= void and then

                                         not standard_menu_bar.is_empty

               end

feature {NONE} -- Misc primitives implementation

        enclosing_box: EV_FIXED

                       -- Invisible Primitives Container

        first_operand: EV_TEXT_FIELD

        second_operand: EV_TEXT_FIELD

                       -- Operator primitives

        result_text: EV_TEXT_FIELD

                       -- Calculation result text box.

        operator: EV_COMBO_BOX

                       -- Operator combo-box primitive

        calculate_button: EV_BUTTON

        text_edit: EV_TEXT

        open_button: EV_BUTTON

        save_button: EV_BUTTON

        calculate_result is

                       -- Calculate the result after the user clicks

                       -- on the 'Calculate --->' button.

               local

                       value: REAL

                       error_dialog: EV_INFORMATION_DIALOG

               do

                       -- Make sure the operands are valid real numbers

                 if (first_operand.text_length > 0) and (first_operand.text.is_real)

                                                     and

                    (second_operand.text_length > 0) and (second_operand.text.is_real)

                 then

                               -- Clear result edit text box contents.

                               result_text.remove_text

                               -- Calculate :-)

                               if operator.selected_item.text.is_equal (" +") then

                                      value := first_operand.text.to_real +

                                               second_operand.text.to_real

                               elseif operator.selected_item.text.is_equal (" -") then

                                      value := first_operand.text.to_real –

                                               second_operand.text.to_real

                               elseif operator.selected_item.text.is_equal (" *") then

                                      value := first_operand.text.to_real *

                                               second_operand.text.to_real

                               elseif operator.selected_item.text.is_equal (" /") then

                                      -- Deal with Divide By Zero error.

                                   if second_operand.text.to_real = 0 then

                                      create error_dialog.make_with_text ("Divide By Zero!");

                                      error_dialog.set_title ("Error");

                                       error_dialog.set_pixmap(default_pixmaps.error_pixmap);

                                      error_dialog.show_modal_to_window (Current)

                                   else

                                      value := first_operand.text.to_real /

                                               second_operand.text.to_real

                                   end

                               end

                               -- Set calculated result value

                               result_text.set_text (value.out)

                       end

               end

        open_file is

                       -- Open a text file

               local

                       file_open_dialog: EV_FILE_OPEN_DIALOG

                       f: PLAIN_TEXT_FILE

               do

                       create file_open_dialog

                       file_open_dialog.show_modal_to_window (Current)

           if file_open_dialog.selected_button.is_equal ((create

                                     {EV_DIALOG_CONSTANTS}).ev_ok) then

                               create f.make_open_read_write (file_open_dialog.file_name)

                               -- Clear previous contents of edit text-box.

                               text_edit.remove_text

                               -- Read file contents and update edit text-box

                               f.read_stream (f.count)

                               text_edit.set_text (f.last_string)

                               f.close

                       end

               end

        save_file is

                       -- Save a text file

               local

                       file_save_dialog: EV_FILE_SAVE_DIALOG

                       f: PLAIN_TEXT_FILE

               do

                       create file_save_dialog

                       file_save_dialog.show_modal_to_window (Current)

                       if file_save_dialog.selected_button.is_equal ((create

                                                      {EV_DIALOG_CONSTANTS}).ev_ok) then

                               create f.make_open_write (file_save_dialog.file_name)

                               -- Write to file contents of edit text-box

                               f.put_string (text_edit.text)

                               f.flush

                               f.close

                       end

               end

        build_primitives is

                       -- Create the operand/operator primitives

               require

                       enclosing_box_not_yet_created: enclosing_box = void

                       first_operand_not_yet_created: first_operand = void

                       second_operand_not_yet_created: second_operand = void

                       result_text_not_yet_created: result_text = void

                       operator_not_yet_created: operator = void

                       calculate_btn_not_yet_created: calculate_btn = void

               do

                       -- Avoid flicker on some platforms

                       lock_update

                       -- Cover entire window area with a primitive container.

                       create enclosing_box

                       extend (enclosing_box)

                       -- Add first operator text edit box primitive

                       create first_operand

                       first_operand.set_minimum_width (138)

                       enclosing_box.extend (first_operand)

                       -- Add operator combo-box primitive

                       create operator

                       operator.set_minimum_width (40)

                       operator.extend (create {EV_LIST_ITEM}.make_with_text (" +"))

                       operator.extend (create {EV_LIST_ITEM}.make_with_text (" -"))

                       operator.extend (create {EV_LIST_ITEM}.make_with_text (" *"))

                       operator.extend (create {EV_LIST_ITEM}.make_with_text (" /"))

                       operator.disable_edit

                       enclosing_box.extend (operator)

                       enclosing_box.set_item_x_position (operator, 149)

                       -- Add second operator text edit box primitive

                       create second_operand

                       second_operand.set_minimum_width (138)

                       enclosing_box.extend (second_operand)

                       enclosing_box.set_item_x_position (second_operand, 200)

                       -- Add 'calculate' button primitive

                       create calculate_btn.make_with_text ("Calculate --->")

                       calculate_btn.set_minimum_width (86)

                       calculate_btn.select_actions.extend (agent calculate_result)

                       enclosing_box.extend (calculate_btn)

                       enclosing_box.set_item_x_position (calculate_btn, 126)

                       enclosing_box.set_item_y_position (calculate_btn, 30)

                       -- Add result text edit box primitive

                       create result_text

                       result_text.set_minimum_width (127)

                       result_text.disable_edit

                       enclosing_box.extend (result_text)

                       enclosing_box.set_item_x_position (result_text, 105)

                       enclosing_box.set_item_y_position (result_text, 60)

                       -- Add the multi-line simple text-edit control

                       create text_edit

                       text_edit.set_minimum_width (320)

                       text_edit.set_minimum_height (170)

                       enclosing_box.extend (text_edit)

                       enclosing_box.set_item_x_position (text_edit, 10)

                       enclosing_box.set_item_y_position (text_edit, 90)

                       -- Add the rest of the buttons

                       create open_button.make_with_text ("Open...")

                       open_button.set_minimum_width (105)

                       enclosing_box.extend (open_button)

                       enclosing_box.set_item_x_position (open_button, 62)

                       enclosing_box.set_item_y_position (open_button, 265)

                       open_button.select_actions.extend (agent open_file)

                       create save_button.make_with_text ("Save...")

                       save_button.set_minimum_width (106)

                       enclosing_box.extend (save_button)

                       enclosing_box.set_item_x_position (save_button, 168)

                       enclosing_box.set_item_y_position (save_button, 265)

                       save_button.select_actions.extend (agent save_file)

                       -- Allow screen refresh on some platforms

                       unlock_update

               ensure

                       enclosing_box_created: enclosing_box /= void

                       first_operand_created: first_operand /= void

                       second_operand_created: second_operand /= void

                       result_text_created: result_text /= void

                       operator_created: operator /= void and then operator.count = 4

                       calculate_btn_created: calculate_btn /= void

               end

feature {NONE} -- Implementation / Constants

        Window_title: STRING is "CALCULATOR"

                       -- Title of the window.

        Window_width: INTEGER is 350

                       -- Initial width for this window.

        Window_height: INTEGER is 335

                       -- Initial height for this window.

end -- class CALCULATOR_WINDOW

This version of the calculator is much simpler than the previous one. The primitive we’ll use is a multi-line text edit control class called EV_TEXT. We add features text_edit: EV_TEXT, open_button: EV_BUTTON and save_button: EV_BUTTON.  These are the exact analogs of the rich-text version of the calculator, with the exception that we no longer have a font_button feature because it’s not applicable here (the reason for which will be clear shortly). Unlike the rich-text analog, the EV_TEXT class unfortunately doesn’t expose features to load/save from a text file or change the font displayed for the text. In this case, we do have an EiffelVision 2 class here that we can use, however, it’s quite primitive (no pun intended!). So, does that mean we’ll have to resort to some WEL based class in favor of an EiffelVision 2 class again, as encountered in the rich-text version of the calculator? Better yet, what about accessing the underlying implementation WEL object for EV_TEXT? Fortunately, the implementation WEL object working underneath EV_TEXT (which happens to be WEL_MULTIPLE_LINE_EDIT) provides a plethora of needed functionality. BUT (a really BIG one), isn’t this second version of the calculator supposed to work on ANY platform. This clearly excludes using both the above possibilities, so what do we do? (Ouch, we’re a duck stuck in the middle of the ocean with no where to go!).  Well, the only obvious way out of this is to do what most of us do when we can’t find something off the shelf……….either craft it ourselves (unless you’re a magician) or simply ignore it altogether J. We’ll take a middle stance; we’ll implement the task of loading/saving from a text-file but ignore the

font-formattting options. You might have noticed that this version of the calculator doesn’t have a font button in the snapshots above (remember, we don’t have a font_button feature!); you now know why.  Unfortunately, there’s no way around this, at-least not without running into platform dependency issues. Hopefully, the next release of EiffelVision 3 will have all these extra bells and whistles built-in so we don’t have to remedy our way out with platform specific code. ISE, are you listening??

In any case, let’s wrap this tutorial quickly. The current implementation of CALCULATOR_WINDOW augments features open_file and save_file. These are the exact analogs of the rich-text version; we’ll quickly skim through them again though for the benefit of those Unix savvy conglomerate that choose to ignore the other (superior!) version of the calculator (sincerely no offense J). Feature open_file starts off by making use of class EV_FILE_OPEN_DIALOG to display a file open dialog box.  The scaring looking conditional

if file_open_dialog.selected_button.is_equal ((create {EV_DIALOG_CONSTANTS}).ev_ok) then

checks whether the user clicked on the OK button.  If so, we open the user selected file via class PLAIN_TEXT_FILE followed by a call to feature remove_text to clear the previous contents of the

text-edit box. Next, we use feature read_stream to read in the content of the whole file into one single string (feature last_string). Finally, feature set_text is used to set the contents of the text-edit box with the newly read string and the opened file then closed. Feature save_file works along the same lines as open_file but in reverse.  We first request the name of the file the user wishes to save to (via the EV_FILE_SAVE_FILE_DIALOG class dialog box).  Next, the scary conditional is revisited again to ensure the OK button was clicked.  We then use feature make_open_write (in class PLAIN_TEXT_FILE) to either open the user selected file (if it already exists) or create a new one (if it doesn’t exist). In either case, the next set of lines write out the contents of the text-edit box to the file. Beware that in the former case, the current contents of the existing file are completely wiped and replaced with the contents of the text-edit box. This is followed by a file close statement which ends the whole process of saving to a file. Feature build_primitives is updated once again (I promise the last time J) to add the text-edit box, open button and save button widgets on the main window. The click event-handlers for the two buttons are tied with features open_file and save_file.

Whew, this finally concludes the tutorial!  Go ahead and tweak the calculator; try to add or make changes for fun! I realize the learning process has been a long one and probably very involved too.  Hey, I did promise to crank out that grey matter, right J. The level of detail might have been intimidating but I hope it was an approachable and novel introduction.  Although the design of EiffelVision 2 is solid, flexible and clean for the most part, there are a few quirks here and there but then, I know of no comparable, multi-platform, Eiffel based GUI class library out there that can beat it J
