Java Platform 1.2

java.awt
Class GridBagLayout

java.lang.Object
  |
  +--java.awt.GridBagLayout

public class GridBagLayout
extends Object
implements LayoutManager2, Serializable

The GridBagLayout class is a flexible layout manager that aligns components vertically and horizontally, without requiring that the components be of the same size. Each GridBagLayout object maintains a dynamic rectangular grid of cells, with each component occupying one or more cells, called its display area.

Each component managed by a grid bag layout is associated with an instance of GridBagConstraints that specifies how the component is laid out within its display area.

How a GridBagLayout object places a set of components depends on the GridBagConstraints object associated with each component, and on the minimum size and the preferred size of the components' containers.

To use a grid bag layout effectively, you must customize one or more of the GridBagConstraints objects that are associated with its components. You customize a GridBagConstraints object by setting one or more of its instance variables:

GridBagConstraints.gridx, GridBagConstraints.gridy
Specifies the cell at the upper left of the component's display area, where the upper-left-most cell has address gridx = 0, gridy = 0. Use GridBagConstraints.RELATIVE (the default value) to specify that the component be just placed just to the right of (for gridx) or just below (for gridy) the component that was added to the container just before this component was added.
GridBagConstraints.gridwidth, GridBagConstraints.gridheight
Specifies the number of cells in a row (for gridwidth) or column (for gridheight) in the component's display area. The default value is 1. Use GridBagConstraints.REMAINDER to specify that the component be the last one in its row (for gridwidth) or column (for gridheight). Use GridBagConstraints.RELATIVE to specify that the component be the next to last one in its row (for gridwidth) or column (for gridheight).
GridBagConstraints.fill
Used when the component's display area is larger than the component's requested size to determine whether (and how) to resize the component. Possible values are GridBagConstraints.NONE (the default), GridBagConstraints.HORIZONTAL (make the component wide enough to fill its display area horizontally, but don't change its height), GridBagConstraints.VERTICAL (make the component tall enough to fill its display area vertically, but don't change its width), and GridBagConstraints.BOTH (make the component fill its display area entirely).
GridBagConstraints.ipadx, GridBagConstraints.ipady
Specifies the component's internal padding within the layout, how much to add to the minimum size of the component. The width of the component will be at least its minimum width plus (ipadx * 2) pixels (since the padding applies to both sides of the component). Similarly, the height of the component will be at least the minimum height plus (ipady * 2) pixels.
GridBagConstraints.insets
Specifies the component's external padding, the minimum amount of space between the component and the edges of its display area.
GridBagConstraints.anchor
Used when the component is smaller than its display area to determine where (within the display area) to place the component. Valid values are GridBagConstraints.CENTER (the default), GridBagConstraints.NORTH, GridBagConstraints.NORTHEAST, GridBagConstraints.EAST, GridBagConstraints.SOUTHEAST, GridBagConstraints.SOUTH, GridBagConstraints.SOUTHWEST, GridBagConstraints.WEST, and GridBagConstraints.NORTHWEST.
GridBagConstraints.weightx, GridBagConstraints.weighty
Used to determine how to distribute space, which is important for specifying resizing behavior. Unless you specify a weight for at least one component in a row (weightx) and column (weighty), all the components clump together in the center of their container. This is because when the weight is zero (the default), the GridBagLayout object puts any extra space between its grid of cells and the edges of the container.

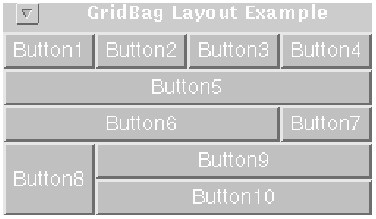

The following figure shows ten components (all buttons) managed by a grid bag layout:

Each of the ten components has the fill field of its associated GridBagConstraints object set to GridBagConstraints.BOTH. In addition, the components have the following non-default constraints:

Here is the code that implements the example shown above:


 import java.awt.*;
 import java.util.*;
 import java.applet.Applet;

 public class GridBagEx1 extends Applet {

     protected void makebutton(String name,
                               GridBagLayout gridbag,
                               GridBagConstraints c) {
         Button button = new Button(name);
         gridbag.setConstraints(button, c);
         add(button);
     }

     public void init() {
         GridBagLayout gridbag = new GridBagLayout();
         GridBagConstraints c = new GridBagConstraints();

         setFont(new Font("Helvetica", Font.PLAIN, 14));
         setLayout(gridbag);

         c.fill = GridBagConstraints.BOTH;
         c.weightx = 1.0;
         makebutton("Button1", gridbag, c);
         makebutton("Button2", gridbag, c);
         makebutton("Button3", gridbag, c);

     	   c.gridwidth = GridBagConstraints.REMAINDER; //end row
         makebutton("Button4", gridbag, c);

         c.weightx = 0.0;		   //reset to the default
         makebutton("Button5", gridbag, c); //another row

 	   c.gridwidth = GridBagConstraints.RELATIVE; //next-to-last in row
         makebutton("Button6", gridbag, c);

 	   c.gridwidth = GridBagConstraints.REMAINDER; //end row
         makebutton("Button7", gridbag, c);

 	   c.gridwidth = 1;	   	   //reset to the default
 	   c.gridheight = 2;
         c.weighty = 1.0;
         makebutton("Button8", gridbag, c);

         c.weighty = 0.0;		   //reset to the default
 	   c.gridwidth = GridBagConstraints.REMAINDER; //end row
 	   c.gridheight = 1;		   //reset to the default
         makebutton("Button9", gridbag, c);
         makebutton("Button10", gridbag, c);

         setSize(300, 100);
     }

     public static void main(String args[]) {
 	   Frame f = new Frame("GridBag Layout Example");
 	   GridBagEx1 ex1 = new GridBagEx1();

 	   ex1.init();

 	   f.add("Center", ex1);
 	   f.pack();
 	   f.setSize(f.getPreferredSize());
 	   f.show();
     }
 }


Since:
JDK1.0
See Also:
GridBagConstraints, Serialized Form

Field Summary
 double[] columnWeights
          This field holds the overrides to the column weights.
 int[] columnWidths
          This field holds the overrides to the column minimum width.
protected  Hashtable comptable
          This hashtable maintains the association between a component and its gridbag constraints.
protected  GridBagConstraints defaultConstraints
          This field holds a gridbag constraints instance containing the default values, so if a component does not have gridbag constraints associated with it, then the component will be assigned a copy of the defaultConstraints.
protected  java.awt.GridBagLayoutInfo layoutInfo
          This field holds tha layout information for the gridbag.
protected static int MAXGRIDSIZE
          The maximum number of grid positions (both horizontally and vertically) that can be laid out by the grid bag layout.
protected static int MINSIZE
          The smallest grid that can be laid out by the grid bag layout.
protected static int PREFERREDSIZE

 int[] rowHeights
          This field holds the overrides to the row minimum heights.
 double[] rowWeights
          This field holds the overrides to the row weights.

Constructor Summary
GridBagLayout()
          Creates a grid bag layout manager.

Method Summary
 void addLayoutComponent(Component comp, Object constraints)
          Adds the specified component to the layout, using the specified constraint object.
 void addLayoutComponent(String name, Component comp)
          Adds the specified component with the specified name to the layout.
protected  void AdjustForGravity(GridBagConstraints constraints, Rectangle r)

protected  void ArrangeGrid(Container parent)

 GridBagConstraints getConstraints(Component comp)
          Gets the constraints for the specified component.
 float getLayoutAlignmentX(Container parent)
          Returns the alignment along the x axis.
 float getLayoutAlignmentY(Container parent)
          Returns the alignment along the y axis.
 int[][] getLayoutDimensions()
          Determines column widths and row heights for the layout grid.
protected  java.awt.GridBagLayoutInfo GetLayoutInfo(Container parent, int sizeflag)
          Print the layout constraints.
 Point getLayoutOrigin()
          Determines the origin of the layout grid.
 double[][] getLayoutWeights()
          Determines the weights of the layout grid's columns and rows.
protected  Dimension GetMinSize(Container parent, java.awt.GridBagLayoutInfo info)

 void invalidateLayout(Container target)
          Invalidates the layout, indicating that if the layout manager has cached information it should be discarded.
 void layoutContainer(Container parent)
          Lays out the specified container using this grid bag layout.
 Point location(int x, int y)
          Determines which cell in the layout grid contains the point specified by (x, y).
protected  GridBagConstraints lookupConstraints(Component comp)
          Retrieves the constraints for the specified component.
 Dimension maximumLayoutSize(Container target)
          Returns the maximum dimensions for this layout given the components in the specified target container.
 Dimension minimumLayoutSize(Container parent)
          Determines the minimum size of the target container using this grid bag layout.
 Dimension preferredLayoutSize(Container parent)
          Determines the preferred size of the target container using this grid bag layout.
 void removeLayoutComponent(Component comp)
          Removes the specified component from this layout.
 void setConstraints(Component comp, GridBagConstraints constraints)
          Sets the constraints for the specified component in this layout.
 String toString()
          Returns a string representation of this grid bag layout's values.

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait


Field Detail

MAXGRIDSIZE

protected static final int MAXGRIDSIZE
The maximum number of grid positions (both horizontally and vertically) that can be laid out by the grid bag layout.

MINSIZE

protected static final int MINSIZE
The smallest grid that can be laid out by the grid bag layout.

PREFERREDSIZE

protected static final int PREFERREDSIZE

comptable

protected Hashtable comptable
This hashtable maintains the association between a component and its gridbag constraints. The Keys in comptable are the components and the values are the instances of GridBagConstraints.
See Also:
GridBagConstraints

defaultConstraints

protected GridBagConstraints defaultConstraints
This field holds a gridbag constraints instance containing the default values, so if a component does not have gridbag constraints associated with it, then the component will be assigned a copy of the defaultConstraints.
See Also:
getConstraints(), setConstraints(), lookupConstraints()

layoutInfo

protected java.awt.GridBagLayoutInfo layoutInfo
This field holds tha layout information for the gridbag. The information in this field is based on the most recent validation of the gridbag. If layoutInfo is null this indicates that there are no components in the gridbag or if there are components, they have not yet been validated.
See Also:
GetLayoutInfo()

columnWidths

public int[] columnWidths
This field holds the overrides to the column minimum width. If this field is non-null the values are applied to the gridbag after all of the minimum columns widths have been calculated. If columnWidths has more elements than the number of columns, columns are added to the gridbag to match the number of elements in columnWidth.
See Also:
getLayoutDimensions()

rowHeights

public int[] rowHeights
This field holds the overrides to the row minimum heights. If this field is non-null the values are applied to the gridbag after all of the minimum row heights have been calculated. If rowHeights has more elements than the number of rows, rowa are added to the gridbag to match the number of elements in rowHeights.
See Also:
getLayoutDimensions()

columnWeights

public double[] columnWeights
This field holds the overrides to the column weights. If this field is non-null the values are applied to the gridbag after all of the columns weights have been calculated. If columnWeights[i] > then weight for column i, then column i is assigned the weight in columnWeights[i]. If columnWeights has more elements than the number of columns, the excess elements are ignored - they do not cause more columns to be created.
See Also:

rowWeights

public double[] rowWeights
This field holds the overrides to the row weights. If this field is non-null the values are applied to the gridbag after all of the rows weights have been calculated. If rowWeights[i] > then weight for row i, then row i is assigned the weight in rowWeights[i]. If rowWeights has more elements than the number of rows, the excess elements are ignored - they do not cause more rows to be created.
See Also:
Constructor Detail

GridBagLayout

public GridBagLayout()
Creates a grid bag layout manager.
Method Detail

setConstraints

public void setConstraints(Component comp,
                           GridBagConstraints constraints)
Sets the constraints for the specified component in this layout.
Parameters:
comp - the component to be modified.
constraints - the constraints to be applied.

getConstraints

public GridBagConstraints getConstraints(Component comp)
Gets the constraints for the specified component. A copy of the actual GridBagConstraints object is returned.
Parameters:
comp - the component to be queried.
Returns:
the constraint for the specified component in this grid bag layout; a copy of the actual constraint object is returned.

lookupConstraints

protected GridBagConstraints lookupConstraints(Component comp)
Retrieves the constraints for the specified component. The return value is not a copy, but is the actual GridBagConstraints object used by the layout mechanism.
Parameters:
comp - the component to be queried
Returns:
the contraints for the specified component.

getLayoutOrigin

public Point getLayoutOrigin()
Determines the origin of the layout grid. Most applications do not call this method directly.
Returns:
the origin of the cell in the top-left corner of the layout grid.
Since:
JDK1.1

getLayoutDimensions

public int[][] getLayoutDimensions()
Determines column widths and row heights for the layout grid.

Most applications do not call this method directly.

Returns:
an array of two arrays, containing the widths of the layout columns and the heights of the layout rows.
Since:
JDK1.1

getLayoutWeights

public double[][] getLayoutWeights()
Determines the weights of the layout grid's columns and rows. Weights are used to calculate how much a given column or row stretches beyond its preferred size, if the layout has extra room to fill.

Most applications do not call this method directly.

Returns:
an array of two arrays, representing the horizontal weights of the layout columns and the vertical weights of the layout rows.
Since:
JDK1.1

location

public Point location(int x,
                      int y)
Determines which cell in the layout grid contains the point specified by (x, y). Each cell is identified by its column index (ranging from 0 to the number of columns minus 1) and its row index (ranging from 0 to the number of rows minus 1).

If the (x, y) point lies outside the grid, the following rules are used. The column index is returned as zero if x lies to the left of the layout, and as the number of columns if x lies to the right of the layout. The row index is returned as zero if y lies above the layout, and as the number of rows if y lies below the layout.

Parameters:
x - the x coordinate of a point.
y - the y coordinate of a point.
Returns:
an ordered pair of indexes that indicate which cell in the layout grid contains the point (xy).
Since:
JDK1.1

addLayoutComponent

public void addLayoutComponent(String name,
                               Component comp)
Adds the specified component with the specified name to the layout.
Parameters:
name - the name of the component.
comp - the component to be added.

addLayoutComponent

public void addLayoutComponent(Component comp,
                               Object constraints)
Adds the specified component to the layout, using the specified constraint object.
Specified by:
addLayoutComponent in interface LayoutManager2
Parameters:
comp - the component to be added.
constraints - an object that determines how the component is added to the layout.

removeLayoutComponent

public void removeLayoutComponent(Component comp)
Removes the specified component from this layout.

Most applications do not call this method directly.

Parameters:
comp - the component to be removed.
See Also:
Container.remove(java.awt.Component), Container.removeAll()

preferredLayoutSize

public Dimension preferredLayoutSize(Container parent)
Determines the preferred size of the target container using this grid bag layout.

Most applications do not call this method directly.

Parameters:
target - the container in which to do the layout.
See Also:
Container.getPreferredSize()

minimumLayoutSize

public Dimension minimumLayoutSize(Container parent)
Determines the minimum size of the target container using this grid bag layout.

Most applications do not call this method directly.

Parameters:
target - the container in which to do the layout.
See Also:
Container.doLayout()

maximumLayoutSize

public Dimension maximumLayoutSize(Container target)
Returns the maximum dimensions for this layout given the components in the specified target container.
Specified by:
maximumLayoutSize in interface LayoutManager2
Parameters:
target - the component which needs to be laid out
See Also:
Container, minimumLayoutSize(java.awt.Container), preferredLayoutSize(java.awt.Container)

getLayoutAlignmentX

public float getLayoutAlignmentX(Container parent)
Returns the alignment along the x axis. This specifies how the component would like to be aligned relative to other components. The value should be a number between 0 and 1 where 0 represents alignment along the origin, 1 is aligned the furthest away from the origin, 0.5 is centered, etc.
Specified by:
getLayoutAlignmentX in interface LayoutManager2

getLayoutAlignmentY

public float getLayoutAlignmentY(Container parent)
Returns the alignment along the y axis. This specifies how the component would like to be aligned relative to other components. The value should be a number between 0 and 1 where 0 represents alignment along the origin, 1 is aligned the furthest away from the origin, 0.5 is centered, etc.
Specified by:
getLayoutAlignmentY in interface LayoutManager2

invalidateLayout

public void invalidateLayout(Container target)
Invalidates the layout, indicating that if the layout manager has cached information it should be discarded.
Specified by:
invalidateLayout in interface LayoutManager2

layoutContainer

public void layoutContainer(Container parent)
Lays out the specified container using this grid bag layout. This method reshapes components in the specified container in order to satisfy the contraints of this GridBagLayout object.

Most applications do not call this method directly.

Parameters:
parent - the container in which to do the layout.
See Also:
Container, Container.doLayout()

toString

public String toString()
Returns a string representation of this grid bag layout's values.
Returns:
a string representation of this grid bag layout.
Overrides:
toString in class Object

GetLayoutInfo

protected java.awt.GridBagLayoutInfo GetLayoutInfo(Container parent,
                                                   int sizeflag)
Print the layout constraints. Useful for debugging.

AdjustForGravity

protected void AdjustForGravity(GridBagConstraints constraints,
                                Rectangle r)

GetMinSize

protected Dimension GetMinSize(Container parent,
                               java.awt.GridBagLayoutInfo info)

ArrangeGrid

protected void ArrangeGrid(Container parent)

Java Platform 1.2

Submit a bug or feature Version 1.2 of Java Platform API Specification
Java is a trademark or registered trademark of Sun Microsystems, Inc. in the US and other countries.
Copyright 1993-1998 Sun Microsystems, Inc. 901 San Antonio Road,
Palo Alto, California, 94303, U.S.A. All Rights Reserved.
