java.awt
Class Scrollbar

java.lang.Object
  |
  +--java.awt.Component
        |
        +--java.awt.Scrollbar

public class Scrollbar
extends Component
implements Adjustable

The Scrollbar class embodies a scroll bar, a familiar user-interface object. A scroll bar provides a convenient means for allowing a user to select from a range of values. The following three vertical scroll bars could be used as slider controls to pick the red, green, and blue components of a color:

Each scroll bar in this example could be created with code similar to the following:

 redSlider=new Scrollbar(Scrollbar.VERTICAL, 0, 1, 0, 255);
 add(redSlider);

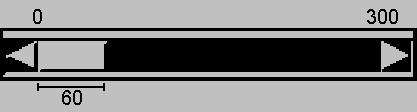

Alternatively, a scroll bar can represent a range of values. For example, if a scroll bar is used for scrolling through text, the width of the "bubble" or "thumb" can represent the amount of text that is visible. Here is an example of a scroll bar that represents a range:

The value range represented by the bubble is the visible range of the scroll bar. The horizontal scroll bar in this example could be created with code like the following:

 ranger = new Scrollbar(Scrollbar.HORIZONTAL, 0, 60, 0, 300);
 add(ranger);

Note that the actual maximum value of the scroll bar is the maximum minus the visible. In the previous example, because the maximum is 300 and the visible is 60, the actual maximum value is 240. The range of the scrollbar track is 0 - 300. The left side of the bubble indicates the value of the scroll bar.

Normally, the user changes the value of the scroll bar by making a gesture with the mouse. For example, the user can drag the scroll bar's bubble up and down, or click in the scroll bar's unit increment or block increment areas. Keyboard gestures can also be mapped to the scroll bar. By convention, the Page Up and Page Down keys are equivalent to clicking in the scroll bar's block increment and block decrement areas.

When the user changes the value of the scroll bar, the scroll bar receives an instance of AdjustmentEvent. The scroll bar processes this event, passing it along to any registered listeners.

Any object that wishes to be notified of changes to the scroll bar's value should implement AdjustmentListener, an interface defined in the package java.awt.event. Listeners can be added and removed dynamically by calling the methods addAdjustmentListener and removeAdjustmentListener.

The AdjustmentEvent class defines five types of adjustment event, listed here:

AdjustmentEvent.TRACK is sent out when the user drags the scroll bar's bubble.
AdjustmentEvent.UNIT_INCREMENT is sent out when the user clicks in the left arrow of a horizontal scroll bar, or the top arrow of a vertical scroll bar, or makes the equivalent gesture from the keyboard.
AdjustmentEvent.UNIT_DECREMENT is sent out when the user clicks in the right arrow of a horizontal scroll bar, or the bottom arrow of a vertical scroll bar, or makes the equivalent gesture from the keyboard.
AdjustmentEvent.BLOCK_INCREMENT is sent out when the user clicks in the track, to the left of the bubble on a horizontal scroll bar, or above the bubble on a vertical scroll bar. By convention, the Page Up key is equivalent, if the user is using a keyboard that defines a Page Up key.
AdjustmentEvent.BLOCK_DECREMENT is sent out when the user clicks in the track, to the right of the bubble on a horizontal scroll bar, or below the bubble on a vertical scroll bar. By convention, the Page Down key is equivalent, if the user is using a keyboard that defines a Page Down key.

The JDK 1.0 event system is supported for backwards compatibility, but its use with newer versions of JDK is discouraged. The fives types of adjustment event introduced with JDK 1.1 correspond to the five event types that are associated with scroll bars in previous JDK versions. The following list gives the adjustment event type, and the corresponding JDK 1.0 event type it replaces.

AdjustmentEvent.TRACK replaces Event.SCROLL_ABSOLUTE
AdjustmentEvent.UNIT_INCREMENT replaces Event.SCROLL_LINE_UP
AdjustmentEvent.UNIT_DECREMENT replaces Event.SCROLL_LINE_DOWN
AdjustmentEvent.BLOCK_INCREMENT replaces Event.SCROLL_PAGE_UP
AdjustmentEvent.BLOCK_DECREMENT replaces Event.SCROLL_PAGE_DOWN

Since:: JDK1.0
See Also:: AdjustmentEvent, AdjustmentListener, Serialized Form

Field Summary
`static int`	`HORIZONTAL` A constant that indicates a horizontal scroll bar.
`static int`	`VERTICAL` A constant that indicates a vertical scroll bar.

Fields inherited from class java.awt.Component

BOTTOM_ALIGNMENT,
CENTER_ALIGNMENT,
LEFT_ALIGNMENT,
RIGHT_ALIGNMENT,
TOP_ALIGNMENT

Constructor Summary
`Scrollbar()` Constructs a new vertical scroll bar.
`Scrollbar(int orientation)` Constructs a new scroll bar with the specified orientation.
`Scrollbar(int orientation, int value, int visible, int minimum, int maximum)` Constructs a new scroll bar with the specified orientation, initial value, page size, and minimum and maximum values.

Method Summary
`void`	`addAdjustmentListener(AdjustmentListener l)` Adds the specified adjustment listener to receive instances of `AdjustmentEvent` from this scroll bar.
`void`	`addNotify()` Creates the Scrollbar's peer.
`int`	`getBlockIncrement()` Gets the block increment of this scroll bar.
`int`	`getLineIncrement()` Deprecated. As of JDK version 1.1, replaced by `getUnitIncrement()`.
`int`	`getMaximum()` Gets the maximum value of this scroll bar.
`int`	`getMinimum()` Gets the minimum value of this scroll bar.
`int`	`getOrientation()` Determines the orientation of this scroll bar.
`int`	`getPageIncrement()` Deprecated. As of JDK version 1.1, replaced by `getBlockIncrement()`.
`int`	`getUnitIncrement()` Gets the unit increment for this scrollbar.
`int`	`getValue()` Gets the current value of this scroll bar.
`int`	`getVisible()` Deprecated. As of JDK version 1.1, replaced by `getVisibleAmount()`.
`int`	`getVisibleAmount()` Gets the visible amount of this scroll bar.
`protected String`	`paramString()` Returns the parameter string representing the state of this scroll bar.
`protected void`	`processAdjustmentEvent(AdjustmentEvent e)` Processes adjustment events occurring on this scrollbar by dispatching them to any registered `AdjustmentListener` objects.
`protected void`	`processEvent(AWTEvent e)` Processes events on this scroll bar.
`void`	`removeAdjustmentListener(AdjustmentListener l)` Removes the specified adjustment listener so that it no longer receives instances of `AdjustmentEvent` from this scroll bar.
`void`	`setBlockIncrement(int v)` Sets the block increment for this scroll bar.
`void`	`setLineIncrement(int v)` Deprecated. As of JDK version 1.1, replaced by `setUnitIncrement(int)`.
`void`	`setMaximum(int newMaximum)` Sets the maximum value of this scroll bar.
`void`	`setMinimum(int newMinimum)` Sets the minimum value of this scroll bar.
`void`	`setOrientation(int orientation)` Sets the orientation for this scroll bar.
`void`	`setPageIncrement(int v)` Deprecated. As of JDK version 1.1, replaced by `setBlockIncrement()`.
`void`	`setUnitIncrement(int v)` Sets the unit increment for this scroll bar.
`void`	`setValue(int newValue)` Sets the value of this scroll bar to the specified value.
`void`	`setValues(int value, int visible, int minimum, int maximum)` Sets the values of four properties for this scroll bar.
`void`	`setVisibleAmount(int newAmount)` Sets the visible amount of this scroll bar.

Methods inherited from class java.awt.Component

action,
add,
addComponentListener,
addFocusListener,
addInputMethodListener,
addKeyListener,
addMouseListener,
addMouseMotionListener,
addPropertyChangeListener,
addPropertyChangeListener,
bounds,
checkImage,
checkImage,
coalesceEvents,
contains,
contains,
createImage,
createImage,
deliverEvent,
disable,
disableEvents,
dispatchEvent,
doLayout,
enable,
enable,
enableEvents,
enableInputMethods,
firePropertyChange,
getAlignmentX,
getAlignmentY,
getBackground,
getBounds,
getBounds,
getColorModel,
getComponentAt,
getComponentAt,
getComponentOrientation,
getCursor,
getDropTarget,
getFont,
getFontMetrics,
getForeground,
getGraphics,
getHeight,
getInputContext,
getInputMethodRequests,
getLocale,
getLocation,
getLocation,
getLocationOnScreen,
getMaximumSize,
getMinimumSize,
getName,
getParent,
getPeer,
getPreferredSize,
getSize,
getSize,
getToolkit,
getTreeLock,
getWidth,
getX,
getY,
gotFocus,
handleEvent,
hasFocus,
hide,
imageUpdate,
inside,
invalidate,
isDisplayable,
isDoubleBuffered,
isEnabled,
isFocusTraversable,
isLightweight,
isOpaque,
isShowing,
isValid,
isVisible,
keyDown,
keyUp,
layout,
list,
list,
list,
list,
list,
locate,
location,
lostFocus,
minimumSize,
mouseDown,
mouseDrag,
mouseEnter,
mouseExit,
mouseMove,
mouseUp,
move,
nextFocus,
paint,
paintAll,
postEvent,
preferredSize,
prepareImage,
prepareImage,
print,
printAll,
processComponentEvent,
processFocusEvent,
processInputMethodEvent,
processKeyEvent,
processMouseEvent,
processMouseMotionEvent,
remove,
removeComponentListener,
removeFocusListener,
removeInputMethodListener,
removeKeyListener,
removeMouseListener,
removeMouseMotionListener,
removeNotify,
removePropertyChangeListener,
removePropertyChangeListener,
repaint,
repaint,
repaint,
repaint,
requestFocus,
reshape,
resize,
resize,
setBackground,
setBounds,
setBounds,
setComponentOrientation,
setCursor,
setDropTarget,
setEnabled,
setFont,
setForeground,
setLocale,
setLocation,
setLocation,
setName,
setSize,
setSize,
setVisible,
show,
show,
size,
toString,
transferFocus,
update,
validate

Methods inherited from class java.lang.Object

clone,
equals,
finalize,
getClass,
hashCode,
notify,
notifyAll,
wait,
wait,
wait

Field Detail

HORIZONTAL

public static final int HORIZONTAL

A constant that indicates a horizontal scroll bar.

VERTICAL

public static final int VERTICAL

A constant that indicates a vertical scroll bar.

Constructor Detail

Scrollbar

public Scrollbar()

Constructs a new vertical scroll bar. The default properties of the scroll bar are listed in the following table:

Property	Description	Default Value
orientation	indicates if the scroll bar is vertical or horizontal	`Scrollbar.VERTICAL`
value	value which controls the location of the scroll bar bubble	0
minimum	minimum value of the scroll bar	0
maximum	maximum value of the scroll bar	100
unit increment	amount the value changes when the Line Up or Line Down key is pressed, or when the end arrows of the scrollbar are clicked	1
block increment	amount the value changes when the Page Up or Page Down key is pressed, or when the scrollbar track is clicked on either side of the bubble	10

Scrollbar

public Scrollbar(int orientation)

Constructs a new scroll bar with the specified orientation.

The orientation argument must take one of the two values Scrollbar.HORIZONTAL, or Scrollbar.VERTICAL, indicating a horizontal or vertical scroll bar, respectively.

Parameters:: orientation - indicates the orientation of the scroll bar.
Throws:: IllegalArgumentException - when an illegal value for the orientation argument is supplied.

Scrollbar

public Scrollbar(int orientation,
                 int value,
                 int visible,
                 int minimum,
                 int maximum)

Constructs a new scroll bar with the specified orientation, initial value, page size, and minimum and maximum values.

The orientation argument must take one of the two values Scrollbar.HORIZONTAL, or Scrollbar.VERTICAL, indicating a horizontal or vertical scroll bar, respectively.

If the specified maximum value is less than the minimum value, it is changed to be the same as the minimum value. If the initial value is lower than the minimum value, it is changed to be the minimum value; if it is greater than the maximum value, it is changed to be the maximum value.

Parameters:: orientation - indicates the orientation of the scroll bar.; value - the initial value of the scroll bar.; visible - the size of the scroll bar's bubble, representing the visible portion; the scroll bar uses this value when paging up or down by a page.; minimum - the minimum value of the scroll bar.; maximum - the maximum value of the scroll bar.

Method Detail

addNotify

public void addNotify()

Creates the Scrollbar's peer. The peer allows you to modify the appearance of the Scrollbar without changing any of its functionality.

Overrides:: addNotify in class Component

getOrientation

public int getOrientation()

Determines the orientation of this scroll bar.

Specified by:: getOrientation in interface Adjustable
Returns:: the orientation of this scroll bar, either Scrollbar.HORIZONTAL or Scrollbar.VERTICAL.
See Also:: setOrientation(int)

setOrientation

public void setOrientation(int orientation)

Sets the orientation for this scroll bar.

Parameters:: the - orientation of this scroll bar, either Scrollbar.HORIZONTAL or Scrollbar.VERTICAL.
Throws:: IllegalArgumentException - if the value supplied for orientation is not a legal value.
Since:: JDK1.1
See Also:: getOrientation()

getValue

public int getValue()

Gets the current value of this scroll bar.

Specified by:: getValue in interface Adjustable
Returns:: the current value of this scroll bar.
See Also:: getMinimum(), getMaximum()

setValue

public void setValue(int newValue)

Sets the value of this scroll bar to the specified value.

If the value supplied is less than the current minimum or greater than the current maximum, then one of those values is substituted, as appropriate.

Normally, a program should change a scroll bar's value only by calling setValues. The setValues method simultaneously and synchronously sets the minimum, maximum, visible amount, and value properties of a scroll bar, so that they are mutually consistent.

Specified by:: setValue in interface Adjustable
Parameters:: newValue - the new value of the scroll bar.
See Also:: setValues(int, int, int, int), getValue(), getMinimum(), getMaximum()

getMinimum

public int getMinimum()

Gets the minimum value of this scroll bar.

Specified by:: getMinimum in interface Adjustable
Returns:: the minimum value of this scroll bar.
See Also:: getValue(), getMaximum()

setMinimum

public void setMinimum(int newMinimum)

Sets the minimum value of this scroll bar.

Normally, a program should change a scroll bar's minimum value only by calling setValues. The setValues method simultaneously and synchronously sets the minimum, maximum, visible amount, and value properties of a scroll bar, so that they are mutually consistent.

Specified by:: setMinimum in interface Adjustable
Parameters:: newMinimum - the new minimum value for this scroll bar.
Since:: JDK1.1
See Also:: setValues(int, int, int, int), setMaximum(int)

getMaximum

public int getMaximum()

Gets the maximum value of this scroll bar.

Specified by:: getMaximum in interface Adjustable
Returns:: the maximum value of this scroll bar.
See Also:: getValue(), getMinimum()

setMaximum

public void setMaximum(int newMaximum)

Sets the maximum value of this scroll bar.

Normally, a program should change a scroll bar's maximum value only by calling setValues. The setValues method simultaneously and synchronously sets the minimum, maximum, visible amount, and value properties of a scroll bar, so that they are mutually consistent.

Specified by:: setMaximum in interface Adjustable
Parameters:: newMaximum - the new maximum value for this scroll bar.
Since:: JDK1.1
See Also:: java.awtScrollbar#setValues, java.awtScrollbar#setMinimum

getVisibleAmount

public int getVisibleAmount()

Gets the visible amount of this scroll bar.

The visible amount of a scroll bar is the range of values represented by the width of the scroll bar's bubble. It is used to determine the scroll bar's block increment.

Specified by:: getVisibleAmount in interface Adjustable
Returns:: the visible amount of this scroll bar.
Since:: JDK1.1
See Also:: setVisibleAmount(int)

getVisible

public int getVisible()

Deprecated. As of JDK version 1.1, replaced by getVisibleAmount().

setVisibleAmount

public void setVisibleAmount(int newAmount)

Sets the visible amount of this scroll bar.

The visible amount of a scroll bar is the range of values represented by the width of the scroll bar's bubble. It is used to determine the scroll bar's block increment.

Specified by:: setVisibleAmount in interface Adjustable
Parameters:: newAmount - the amount visible per page.
Since:: JDK1.1
See Also:: getVisibleAmount(), setValues(int, int, int, int)

setUnitIncrement

public void setUnitIncrement(int v)

Sets the unit increment for this scroll bar.

The unit increment is the value that is added (subtracted) when the user activates the unit increment area of the scroll bar, generally through a mouse or keyboard gesture that the scroll bar receives as an adjustment event.

Specified by:: setUnitIncrement in interface Adjustable
Parameters:: v - the amount by which to increment or decrement the scroll bar's value.
Since:: JDK1.1
See Also:: getUnitIncrement()

setLineIncrement

public void setLineIncrement(int v)

Deprecated. As of JDK version 1.1, replaced by setUnitIncrement(int).

getUnitIncrement

public int getUnitIncrement()

Gets the unit increment for this scrollbar.

Specified by:: getUnitIncrement in interface Adjustable
Returns:: the unit increment of this scroll bar.
Since:: JDK1.1
See Also:: setUnitIncrement(int)

getLineIncrement

public int getLineIncrement()

Deprecated. As of JDK version 1.1, replaced by getUnitIncrement().

setBlockIncrement

public void setBlockIncrement(int v)

Sets the block increment for this scroll bar.

The block increment is the value that is added (subtracted) when the user activates the block increment area of the scroll bar, generally through a mouse or keyboard gesture that the scroll bar receives as an adjustment event.

Specified by:: setBlockIncrement in interface Adjustable
Parameters:: v - the amount by which to increment or decrement the scroll bar's value.
Since:: JDK1.1
See Also:: getBlockIncrement()

setPageIncrement

public void setPageIncrement(int v)

Deprecated. As of JDK version 1.1, replaced by setBlockIncrement().

getBlockIncrement

public int getBlockIncrement()

Gets the block increment of this scroll bar.

Specified by:: getBlockIncrement in interface Adjustable
Returns:: the block increment of this scroll bar.
Since:: JDK1.1
See Also:: setBlockIncrement(int)

getPageIncrement

public int getPageIncrement()

Deprecated. As of JDK version 1.1, replaced by getBlockIncrement().

setValues

public void setValues(int value,
                      int visible,
                      int minimum,
                      int maximum)

Sets the values of four properties for this scroll bar.

This method simultaneously and synchronously sets the values of four scroll bar properties, assuring that the values of these properties are mutually consistent. It enforces the constraints that maximum cannot be less than minimum, and that value cannot be less than the minimum or greater than the maximum.

Parameters:: value - is the position in the current window.; visible - is the amount visible per page.; minimum - is the minimum value of the scroll bar.; maximum - is the maximum value of the scroll bar.

addAdjustmentListener

public void addAdjustmentListener(AdjustmentListener l)

Adds the specified adjustment listener to receive instances of AdjustmentEvent from this scroll bar. If l is null, no exception is thrown and no action is performed.

Specified by:: addAdjustmentListener in interface Adjustable
Parameters:: l - the adjustment listener.
Since:: JDK1.1
See Also:: AdjustmentEvent, AdjustmentListener, removeAdjustmentListener(java.awt.event.AdjustmentListener)

removeAdjustmentListener

public void removeAdjustmentListener(AdjustmentListener l)

Removes the specified adjustment listener so that it no longer receives instances of AdjustmentEvent from this scroll bar. If l is null, no exception is thrown and no action is performed.

Specified by:: removeAdjustmentListener in interface Adjustable
Parameters:: l - the adjustment listener.
Since:: JDK1.1
See Also:: AdjustmentEvent, AdjustmentListener, addAdjustmentListener(java.awt.event.AdjustmentListener)

processEvent

protected void processEvent(AWTEvent e)

Processes events on this scroll bar. If the event is an instance of AdjustmentEvent, it invokes the processAdjustmentEvent method. Otherwise, it invokes its superclass's processEvent method.

Parameters:: e - the event.
Overrides:: processEvent in class Component
Since:: JDK1.1
See Also:: AdjustmentEvent, processAdjustmentEvent(java.awt.event.AdjustmentEvent)

processAdjustmentEvent

protected void processAdjustmentEvent(AdjustmentEvent e)

Processes adjustment events occurring on this scrollbar by dispatching them to any registered AdjustmentListener objects.

This method is not called unless adjustment events are enabled for this component. Adjustment events are enabled when one of the following occurs:

An AdjustmentListener object is registered via addAdjustmentListener.
Adjustment events are enabled via enableEvents.

Parameters:: e - the adjustment event.
Since:: JDK1.1
See Also:: AdjustmentEvent, AdjustmentListener, addAdjustmentListener(java.awt.event.AdjustmentListener), Component.enableEvents(long)

paramString

protected String paramString()

Returns the parameter string representing the state of this scroll bar. This string is useful for debugging.

Returns:: the parameter string of this scroll bar.
Overrides:: paramString in class Component

Overview

Package

Class

Use

Tree

Deprecated

Index

Help

Java Platform 1.2

PREV CLASS NEXT CLASS

FRAMES NO FRAMES

SUMMARY: INNER | FIELD | CONSTR | METHOD

DETAIL: FIELD | CONSTR | METHOD

Submit a bug or feature Version 1.2 of Java Platform API Specification
Java is a trademark or registered trademark of Sun Microsystems, Inc. in the US and other countries.
Copyright 1993-1998 Sun Microsystems, Inc. 901 San Antonio Road,
Palo Alto, California, 94303, U.S.A. All Rights Reserved.

java.awt Class Scrollbar

HORIZONTAL

VERTICAL

Scrollbar

Scrollbar

Scrollbar

addNotify

getOrientation

setOrientation

getValue

setValue

getMinimum

setMinimum

getMaximum

setMaximum

getVisibleAmount

getVisible

setVisibleAmount

setUnitIncrement

setLineIncrement

getUnitIncrement

getLineIncrement

setBlockIncrement

setPageIncrement

getBlockIncrement

getPageIncrement

setValues

addAdjustmentListener

removeAdjustmentListener

processEvent

processAdjustmentEvent

paramString

java.awt
Class Scrollbar
