Java Platform 1.2

java.awt
Class TextField

java.lang.Object
  |
  +--java.awt.Component
        |
        +--java.awt.TextComponent
              |
              +--java.awt.TextField

public class TextField
extends TextComponent

A TextField object is a text component that allows for the editing of a single line of text.

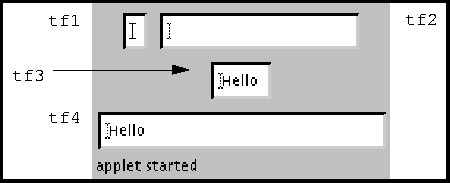

For example, the following image depicts a frame with four text fields of varying widths. Two of these text fields display the predefined text "Hello".

Here is the code that produces these four text fields:


 TextField tf1, tf2, tf3, tf4;
 // a blank text field
 tf1 = new TextField();
 // blank field of 20 columns
 tf2 = new TextField("", 20);
 // predefined text displayed
 tf3 = new TextField("Hello!");
 // predefined text in 30 columns
 tf4 = new TextField("Hello", 30);


Every time the user types a key in the text field, AWT sends two action events to the text field. The first one represents the key press and the second one, the key release. Each action event embodies the state of the system at the time that some action occurred. The properties of an action event indicate which key was pressed, what modifier keys were also pressed, and the time at which the event occurred.

Since the event is an instance of ActionEvent, the TextField class's processEvent method examines the event and passes it along to processActionEvent. The latter method redirects the event to any ActionListener objects that have registered an interest in action events generated by this text field.

Since:
JDK1.0
See Also:
ActionEvent, processEvent(java.awt.AWTEvent), processActionEvent(java.awt.event.ActionEvent), Serialized Form

Fields inherited from class java.awt.TextComponent
textListener

Fields inherited from class java.awt.Component
BOTTOM_ALIGNMENT, CENTER_ALIGNMENT, LEFT_ALIGNMENT, RIGHT_ALIGNMENT, TOP_ALIGNMENT

Constructor Summary
TextField()
          Constructs a new text field.
TextField(int columns)
          Constructs a new empty TextField with the specified number of columns.
TextField(String text)
          Constructs a new text field initialized with the specified text.
TextField(String text, int columns)
          Constructs a new text field initialized with the specified text to be displayed, and wide enough to hold the specified number of columns.

Method Summary
 void addActionListener(ActionListener l)
          Adds the specified action listener to recieve action events from this text field.
 void addNotify()
          Creates the TextField's peer.
 boolean echoCharIsSet()
          Indicates whether or not this text field has a character set for echoing.
 int getColumns()
          Gets the number of columns in this text field.
 char getEchoChar()
          Gets the character that is to be used for echoing.
 Dimension getMinimumSize()
          Gets the minumum dimensions for this text field.
 Dimension getMinimumSize(int columns)
          Gets the minumum dimensions for a text field with the specified number of columns.
 Dimension getPreferredSize()
          Gets the preferred size of this text field.
 Dimension getPreferredSize(int columns)
          Gets the preferred size of this text field with the specified number of columns.
 Dimension minimumSize()
          Deprecated. As of JDK version 1.1, replaced by getMinimumSize().
 Dimension minimumSize(int columns)
          Deprecated. As of JDK version 1.1, replaced by getMinimumSize(int).
protected  String paramString()
          Returns the parameter string representing the state of this text field.
 Dimension preferredSize()
          Deprecated. As of JDK version 1.1, replaced by getPreferredSize().
 Dimension preferredSize(int columns)
          Deprecated. As of JDK version 1.1, replaced by getPreferredSize(int).
protected  void processActionEvent(ActionEvent e)
          Processes action events occurring on this text field by dispatching them to any registered ActionListener objects.
protected  void processEvent(AWTEvent e)
          Processes events on this text field.
 void removeActionListener(ActionListener l)
          Removes the specified action listener so that it no longer receives action events from this text field.
 void setColumns(int columns)
          Sets the number of columns in this text field.
 void setEchoChar(char c)
          Sets the echo character for this text field.
 void setEchoCharacter(char c)
          Deprecated. As of JDK version 1.1, replaced by setEchoChar(char).
 void setText(String t)
          Sets the text that is presented by this text component to be the specified text.

Methods inherited from class java.awt.TextComponent
addTextListener, getCaretPosition, getSelectedText, getSelectionEnd, getSelectionStart, getText, isEditable, processTextEvent, removeNotify, removeTextListener, select, selectAll, setCaretPosition, setEditable, setSelectionEnd, setSelectionStart

Methods inherited from class java.awt.Component
action, add, addComponentListener, addFocusListener, addInputMethodListener, addKeyListener, addMouseListener, addMouseMotionListener, addPropertyChangeListener, addPropertyChangeListener, bounds, checkImage, checkImage, coalesceEvents, contains, contains, createImage, createImage, deliverEvent, disable, disableEvents, dispatchEvent, doLayout, enable, enable, enableEvents, enableInputMethods, firePropertyChange, getAlignmentX, getAlignmentY, getBackground, getBounds, getBounds, getColorModel, getComponentAt, getComponentAt, getComponentOrientation, getCursor, getDropTarget, getFont, getFontMetrics, getForeground, getGraphics, getHeight, getInputContext, getInputMethodRequests, getLocale, getLocation, getLocation, getLocationOnScreen, getMaximumSize, getName, getParent, getPeer, getSize, getSize, getToolkit, getTreeLock, getWidth, getX, getY, gotFocus, handleEvent, hasFocus, hide, imageUpdate, inside, invalidate, isDisplayable, isDoubleBuffered, isEnabled, isFocusTraversable, isLightweight, isOpaque, isShowing, isValid, isVisible, keyDown, keyUp, layout, list, list, list, list, list, locate, location, lostFocus, mouseDown, mouseDrag, mouseEnter, mouseExit, mouseMove, mouseUp, move, nextFocus, paint, paintAll, postEvent, prepareImage, prepareImage, print, printAll, processComponentEvent, processFocusEvent, processInputMethodEvent, processKeyEvent, processMouseEvent, processMouseMotionEvent, remove, removeComponentListener, removeFocusListener, removeInputMethodListener, removeKeyListener, removeMouseListener, removeMouseMotionListener, removePropertyChangeListener, removePropertyChangeListener, repaint, repaint, repaint, repaint, requestFocus, reshape, resize, resize, setBackground, setBounds, setBounds, setComponentOrientation, setCursor, setDropTarget, setEnabled, setFont, setForeground, setLocale, setLocation, setLocation, setName, setSize, setSize, setVisible, show, show, size, toString, transferFocus, update, validate

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait


Constructor Detail

TextField

public TextField()
Constructs a new text field.

TextField

public TextField(String text)
Constructs a new text field initialized with the specified text.
Parameters:
text - the text to be displayed. If text is null, the empty string "" will be displayed.

TextField

public TextField(int columns)
Constructs a new empty TextField with the specified number of columns. A column is an approximate average character width that is platform-dependent.
Parameters:
columns - the number of columns

TextField

public TextField(String text,
                 int columns)
Constructs a new text field initialized with the specified text to be displayed, and wide enough to hold the specified number of columns. A column is an approximate average character width that is platform-dependent.
Parameters:
text - the text to be displayed. If text is null, the empty string "" will be displayed.
columns - the number of columns.
Method Detail

addNotify

public void addNotify()
Creates the TextField's peer. The peer allows us to modify the appearance of the TextField without changing its functionality.
Overrides:
addNotify in class Component

getEchoChar

public char getEchoChar()
Gets the character that is to be used for echoing.

An echo character is useful for text fields where user input should not be echoed to the screen, as in the case of a text field for entering a password.

Returns:
the echo character for this text field.
See Also:
echoCharIsSet(), setEchoChar(char)

setEchoChar

public void setEchoChar(char c)
Sets the echo character for this text field.

An echo character is useful for text fields where user input should not be echoed to the screen, as in the case of a text field for entering a password.

Parameters:
c - the echo character for this text field.
Since:
JDK1.1
See Also:
echoCharIsSet(), getEchoChar()

setEchoCharacter

public void setEchoCharacter(char c)
Deprecated. As of JDK version 1.1, replaced by setEchoChar(char).

setText

public void setText(String t)
Sets the text that is presented by this text component to be the specified text.
Parameters:
t - the new text.
Overrides:
setText in class TextComponent
See Also:
TextComponent.getText()

echoCharIsSet

public boolean echoCharIsSet()
Indicates whether or not this text field has a character set for echoing.

An echo character is useful for text fields where user input should not be echoed to the screen, as in the case of a text field for entering a password.

Returns:
true if this text field has a character set for echoing; false otherwise.
See Also:
setEchoChar(char), getEchoChar()

getColumns

public int getColumns()
Gets the number of columns in this text field.
Returns:
the number of columns.
Since:
JDK1.1ld.
See Also:
setColumns(int)

setColumns

public void setColumns(int columns)
Sets the number of columns in this text field. A column is an approximate average character width that is platform-dependent.
Parameters:
columns - the number of columns.
Throws:
IllegalArgumentException - if the value supplied for columns is less than zero.
Since:
JDK1.1
See Also:
getColumns()

getPreferredSize

public Dimension getPreferredSize(int columns)
Gets the preferred size of this text field with the specified number of columns.
Parameters:
columns - the number of columns in this text field.
Returns:
the preferred dimensions for displaying this text field.
Since:
JDK1.1

preferredSize

public Dimension preferredSize(int columns)
Deprecated. As of JDK version 1.1, replaced by getPreferredSize(int).

getPreferredSize

public Dimension getPreferredSize()
Gets the preferred size of this text field.
Returns:
the preferred dimensions for displaying this text field.
Overrides:
getPreferredSize in class Component
Since:
JDK1.1

preferredSize

public Dimension preferredSize()
Deprecated. As of JDK version 1.1, replaced by getPreferredSize().
Overrides:
preferredSize in class Component

getMinimumSize

public Dimension getMinimumSize(int columns)
Gets the minumum dimensions for a text field with the specified number of columns.
Parameters:
columns - the number of columns in this text field.
Since:
JDK1.1

minimumSize

public Dimension minimumSize(int columns)
Deprecated. As of JDK version 1.1, replaced by getMinimumSize(int).

getMinimumSize

public Dimension getMinimumSize()
Gets the minumum dimensions for this text field.
Returns:
the minimum dimensions for displaying this text field.
Overrides:
getMinimumSize in class Component
Since:
JDK1.1

minimumSize

public Dimension minimumSize()
Deprecated. As of JDK version 1.1, replaced by getMinimumSize().
Overrides:
minimumSize in class Component

addActionListener

public void addActionListener(ActionListener l)
Adds the specified action listener to recieve action events from this text field. If l is null, no exception is thrown and no action is performed.
Parameters:
l - the action listener.
Since:
JDK1.1
See Also:
java.awt.event, removeActionListener(java.awt.event.ActionListener)

removeActionListener

public void removeActionListener(ActionListener l)
Removes the specified action listener so that it no longer receives action events from this text field. If l is null, no exception is thrown and no action is performed.
Parameters:
l - the action listener.
Since:
JDK1.1
See Also:
java.awt.event, addActionListener(java.awt.event.ActionListener)

processEvent

protected void processEvent(AWTEvent e)
Processes events on this text field. If the event is an instance of ActionEvent, it invokes the processActionEvent method. Otherwise, it invokes processEvent on the superclass.
Parameters:
e - the event.
Overrides:
processEvent in class TextComponent
Since:
JDK1.1
See Also:
ActionEvent, processActionEvent(java.awt.event.ActionEvent)

processActionEvent

protected void processActionEvent(ActionEvent e)
Processes action events occurring on this text field by dispatching them to any registered ActionListener objects.

This method is not called unless action events are enabled for this component. Action events are enabled when one of the following occurs:

Parameters:
e - the action event.
Since:
JDK1.1
See Also:
ActionListener, addActionListener(java.awt.event.ActionListener), Component.enableEvents(long)

paramString

protected String paramString()
Returns the parameter string representing the state of this text field. This string is useful for debugging.
Returns:
the parameter string of this text field.
Overrides:
paramString in class TextComponent
